2.3 Graphical User Interface (GUI)
2 - 14

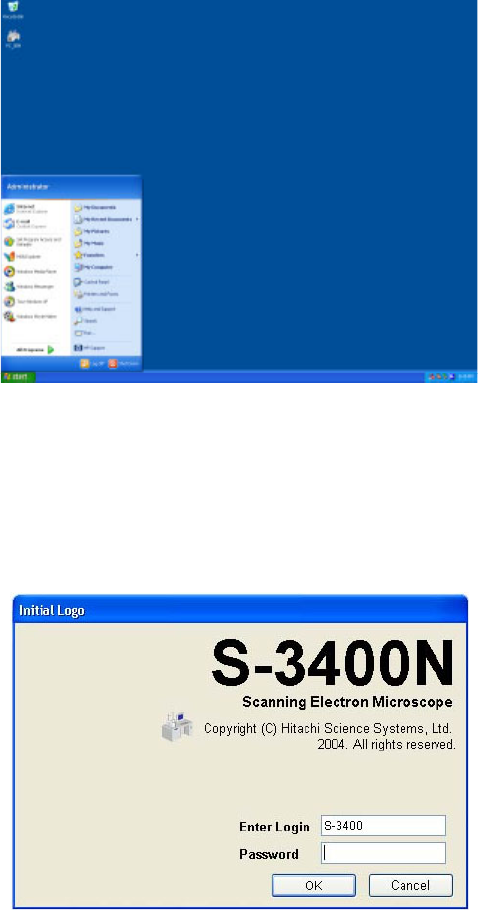

Fig. 2.3-1 Example of Windows Desktop
(Windows XP
(R)
is a trademark of Microsoft Corp.)
The S-3400 login dialog window will open.
Fig. 2.3-2 S-3400N Login Dialog Window
At the first startup after installation of the program, use the login name "S-3400" and click the OK
button. You need no Password. After login names and passwords have been set, input the
name and the password and then click the OK button.
NOTICE: • The system supervisor shall be responsible for setting and maintaining login names
and passwords.
Refer to <3.9.16 Setting Login Name>.
• Setting or change of password for a login name once registered with the above
operation can be made using the Password Setting dialog window.
Refer to < 3.9.15 Password Setting>.
• For operation of Windows, refer to the instruction manual for Windows XP
(R)
.
