Instruction Bulletin
Appendix D Rev. 2.5
May 2005
D-2 Appendices Rosemount Analytical Inc. A Division of Emerson Process Management
World Class 3000
PO WER
SUPPLY
REGULATOR
TUBE
SOLENOID MANI FOLD HOSE
AD APTER
CABLE
GRIP
TER MINATION
BOARD
FLO WM ETER
27270024

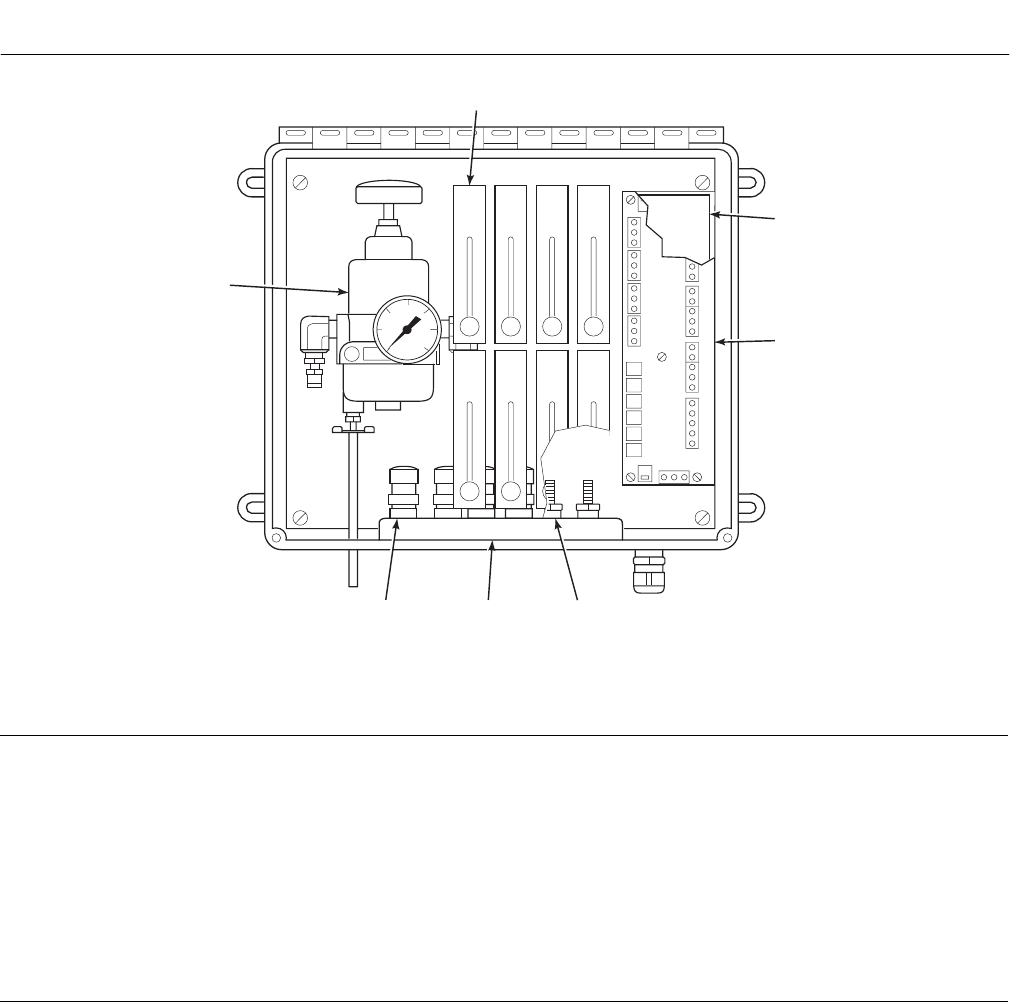

Figure D-2. Multiprobe Calibration Gas Sequencer, Interior
Table D-1. Specifications for Multiprobe Calibration Gas Sequencer.
Environmental Classification.................................................................NEMA 4X (IP56)
Humidity Range.....................................................................................95% Relative Humidity
Humidity Range.....................................................................................95% Relative Humidity
Ambient Temperature Range................................................................-20° to 160°F (-30° to 71°C)
Vibration................................................................................................5 m/sec2, 10 to 500 xyz plane
External Electrical Noise .......................................................................Minimum Interference
Piping Distance Between MPS 3000 and Probe ..................................Maximum 300 feet (91 m)
Cabling Distance Between MPS 3000 and Electronics Package.........Maximum 1000 feet (303 m)
In Calibration Status Relay ...................................................................48V max, 100 mA max
Cabling Distance Between MPS 3000 and Status Relay Indicator ......Maximum 1000 feet (303 m)
Approximate Shipping Weight...............................................................35 pounds (16 kg)
