7. Remote I/O Unit Connection (FCUA-DX1**)
7.3 Connection of Remote I/O Power
53
7.3 Connection of Remote I/O Power
+24VDC is required to run the remote I/O unit. Prepare a stabilized power supply that satisfies the
following conditions.
Output voltage +24V ±5%
Ripple ±5% (P-P)
FCUA-DX10* 2.4A or more
FCUA-DX11* 3.8A or more
FCUA-DX12* 3.8A or more
FCUA-DX13* 3.4A or more
Max. output
current
FCUA-DX14* 3.4A or more
The +24VDC power for the control circuit is supplied from the connector DCIN on the bottom of the unit
or from connectors DI-L, DI-R, DO-L or DO-R on the front. When supplying from the front connector,
supply to all corresponding pins.
When manufacturing the R300 cable, use the single-end connector CN300 (optional, with one end),
and when manufacturing the R301 cable, use the connector set CS301 (optional, with two ends).

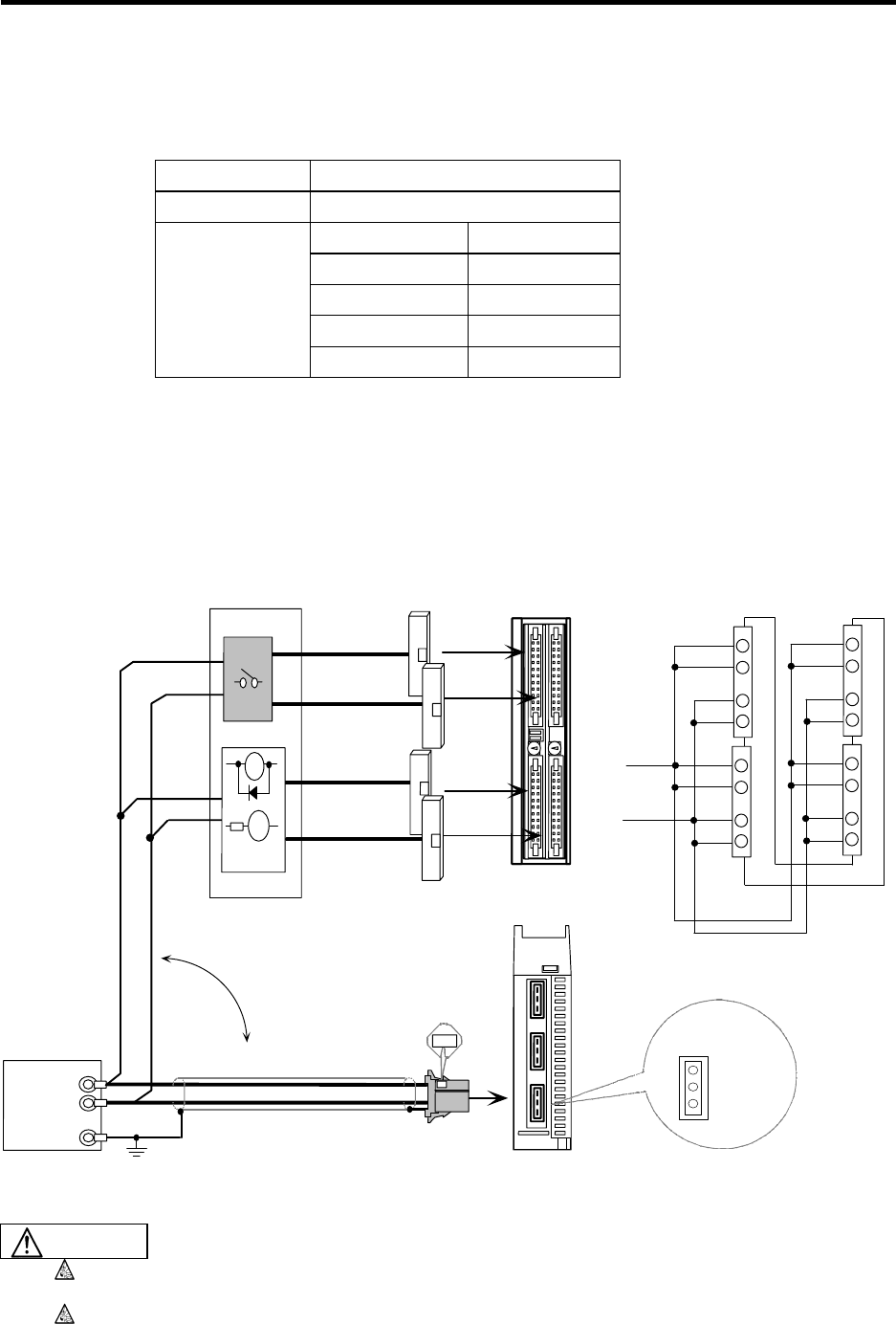

<Connection outline>
DCIN
FG
0V
1
2
3
DO-L DO-R
+24VDC
FG
0V
B1
B2
A1
A2
B1
B2
A1
A2
B1
B2
A1
A2
B1
B2
A1
A2
DI-L
DI-R
DO-R
DO-L
0V
RA
PL
Y Y
Machine control panel,
electric cabinet, etc.
R300 cable
or R301
cable
Remote I/O unit
DI-L DI-R
+24VDC
+24VDC
Front
(Front)
Supply to either method
R220 cable
Base
Stabilized power
(prepare separately)
(Rear)
Do not apply voltages other than those indicated in this manual on the connector. Doing
so may lead to destruction or damage.
Incorrect connections could damage the device, so always connect the cable to the
designated connector.
CAUTION
