Appendix 2 Cable Manufacturing Drawings
2.12 F020 Cable (Manual pulse generator)
93
Cable type name: F020 cable Appendix 2.12
Application: Relay card – Manual pulse generator connection
(when one manual pulse generator is connected)

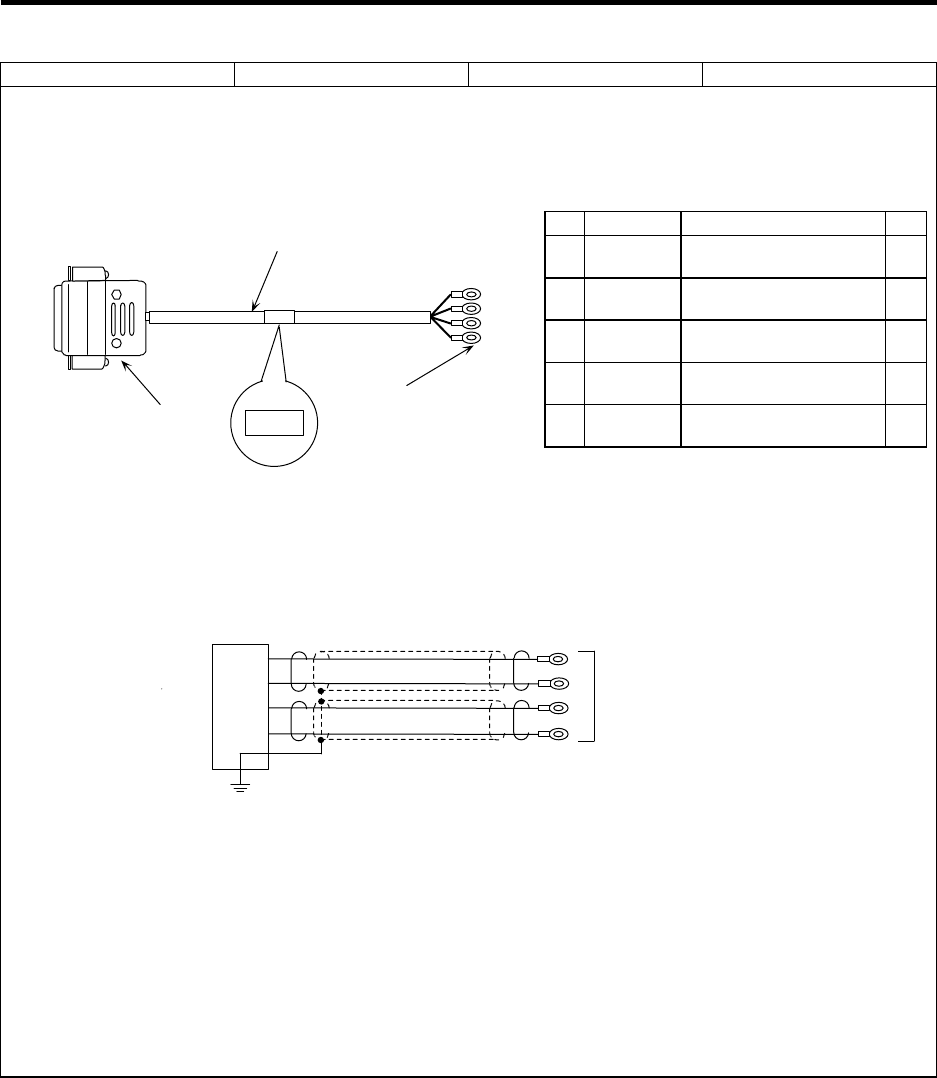

Assembly drawing
(1)(2)(3)
(4)
(5)
F020
F020
Relay card side
Manual pulse generator side
Connection diagram
1
2
10
9
1HA
1HB
+12V
GND
1ch
FG
Relay card side
Manual pulse generator side
Maximum cable length: 50m
Case frame
Manufacturing precautions
(1) The wire material shall be a shielded, 2-pair stranded cable equivalent to AWG22 (0.3mm
2
).
(2) The parts used shall be Mitsubishi recommended parts. Equivalent parts may be used
providing they are compatible with the specifications.
(3) Attach the nameplate with protective cover stamped with the cable name in the position
designated in the assembly drawing.
(4) Fold the wire material shield on the relay card side over the sheath, and wrap copper foil tape
over it. Connect the copper foil tape wrapped around the sheath to a connector GND plate.
(5) Stamp the name of each signal on the crimp terminal side mark tube and install.
List of parts used
No. Part name Recommended part type Qty
1 Connector
Hirose Electric
CDA-15P
1
2 Contact
Hirose Electric
CD-PC-111
4
3
Connector
case
Hirose Electric
HAD-CTH
1
4
Wire
material
Sumitomo Electric
B-22 (19) U × 2SJ-1 × 9
(2)
5
Crimp
terminal
J.S.T. Mfg
V1.25-3
4
