Setting Up the Test - 3
19
Create a Template
Template files contain setup information for the test that you will be running. Using templates can save
valuable time by eliminating the need to enter repetitive data each time you set up a test.
Create a template by entering information into the Main and the Test Setup windows. Use the Tab key
to move among the different fields.

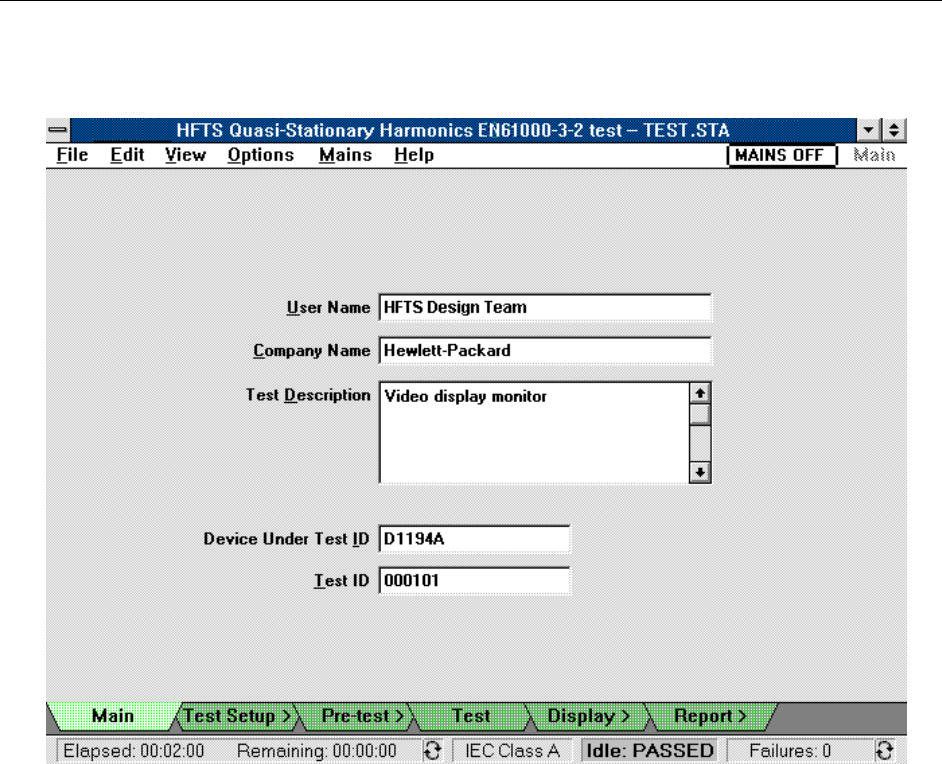

1. Enter the following information into the text boxes of the Main window:
your name
the company name
a brief description of the test procedure that you will be running
a device ID such as a model number
a test ID such as a serial number or test number that uniquely identifies the test
2. Use the menu tabs on the bottom of the screen to access the Test Setup windows. Note that you
can also access the Test Setup windows from the View Menu.
3. Starting with the Standard Test Setup window, select and configure each of the following Test
Setup windows as needed: Standard, Advanced, and Termination
4. Select Save as Template in the File menu to create a template file. Once created, the template
file may be used to quickly create new tests by adding or editing only the information that must
be changed for each test. This is useful if you are conducting a series of tests or testing similar
equipment that is subject to a standardized test.
