3 - Setting Up the Test
24
If termination On Watch Events is enabled, you can select the following Watch Items criteria:
ñ All harmonics greater than the specified percent of threshold
ñ Odd harmonics greater than the specified percent of threshold
ñ Odd 19 harmonics greater than the specified percent of threshold
ñ Even harmonics greater than the specified percent of threshold
ñ Nth, a specific Harmonic Number that is greater than the specified percent of threshold
Select the Test Options for Voltage Fluctuations

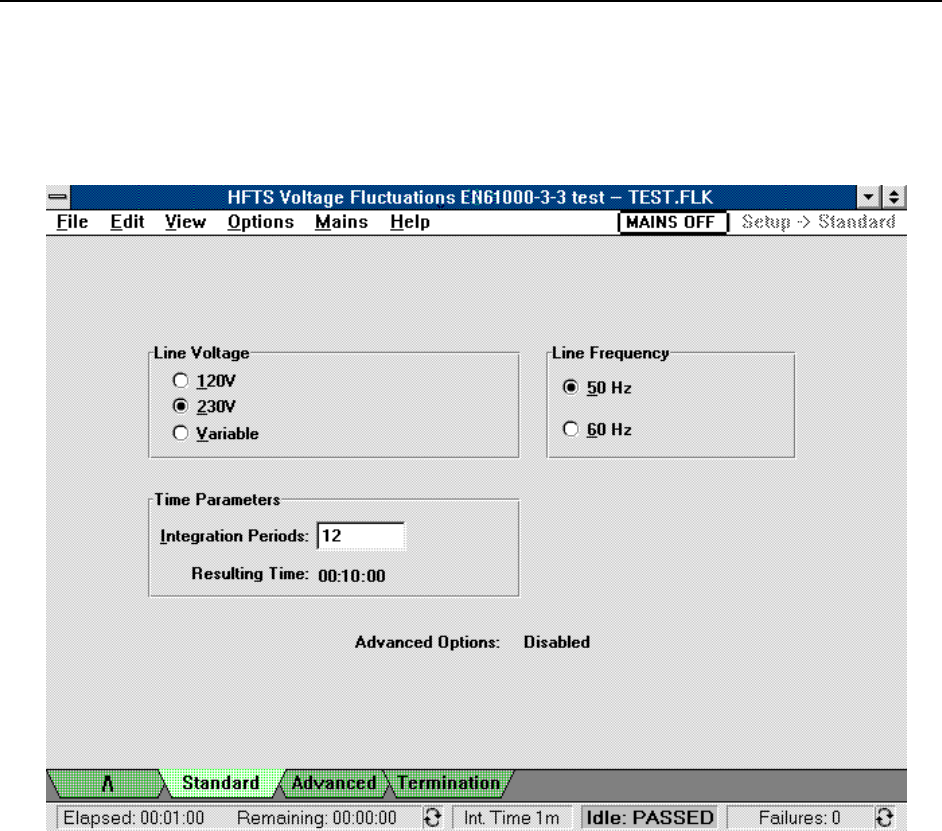

Standard Test Options
Standard options specify the line voltage, line frequency, and test time for compliance tests. They are
selected in the Standard window.
ñ Select the line voltage that you will be applying to the equipment under test.
Selecting Variable lets you enter a value other than 120 Vac or 230 Vac.
ñ Select the line frequency (50 or 60 Hz) that will be applied to the equipment under test.
