icon to run the software.) When the software is run, it automatically searches for an interface card and
queries the Agilent 6800-Series AC Power Source/Analyzer for its model number. Verify that your
configuration is correct as follows:
1. Select the New button in the Welcome Window

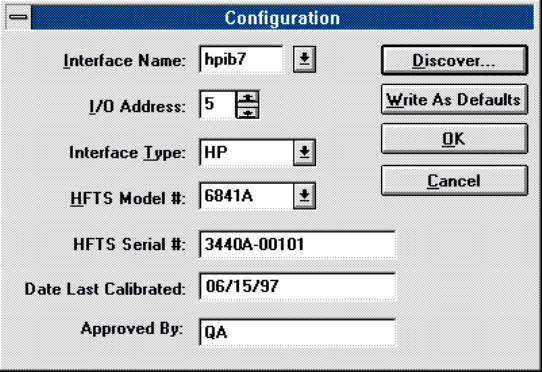

2. In the Options menu, select the Configure... command. This displays a Configuration dialog box
on the screen. The Configuration Dialog box contains the following fields:
ñ The Interface Name identifies the interface session when using an SICL interface. The
application determines the default interface name by checking which interface driver is installed
in your system. If “HP” is the interface type, the Interface Name list box displays all of the SICL
names presently configured in the Windows 95 system. (SICL interface names are assigned to
the ac source in the interface card’s configuration utility.) For Windows NT systems, the list box
displays hpib7 as the default interface name. If “National” is the interface type, the Interface
Name box displays the following pre-defined GPIB names: GPIB0, GPIB1, GPIB2,or GPIB3.
ñ The I/O Address displays the address of the Agilent 6800-Series AC Power Source/Analyzer.
The instrument address can be read or set using the front panel Address key.
ñ The Interface Type is either HP, National, or File only.
ñ The HFTS Model # is the instrument model that you are controlling.
ñ The HFTS Serial # is where you enter the serial number of instrument that you are
controlling.(this is optional)
ñ Enter the date the instrument was last calibrated (this is optional)
ñ Enter the calibration approvel name (this is optional)
Pressing the Discover button causes the software to search for an interface card and query the Agilent
6800-Series AC Power Source/Analyzer for its model number. Any equipment that is located is then
displayed in the appropriate fields in the configuration dialog box.
Pressing Write as Defaults updates the HFTS.INI file with the information that has been entered in this
dialog box either by the user or by the Discover feature. These default values are used during subsequent
start-ups of the Agilent 14761A HFTS software to confirm system configuration.
Press OK to accept the changes, or Cancel to cancel the changes and exit the dialog box.
