Removal and Installation
8-118
HP DesignJet 5000 and 5500 Series Printers Service Manual

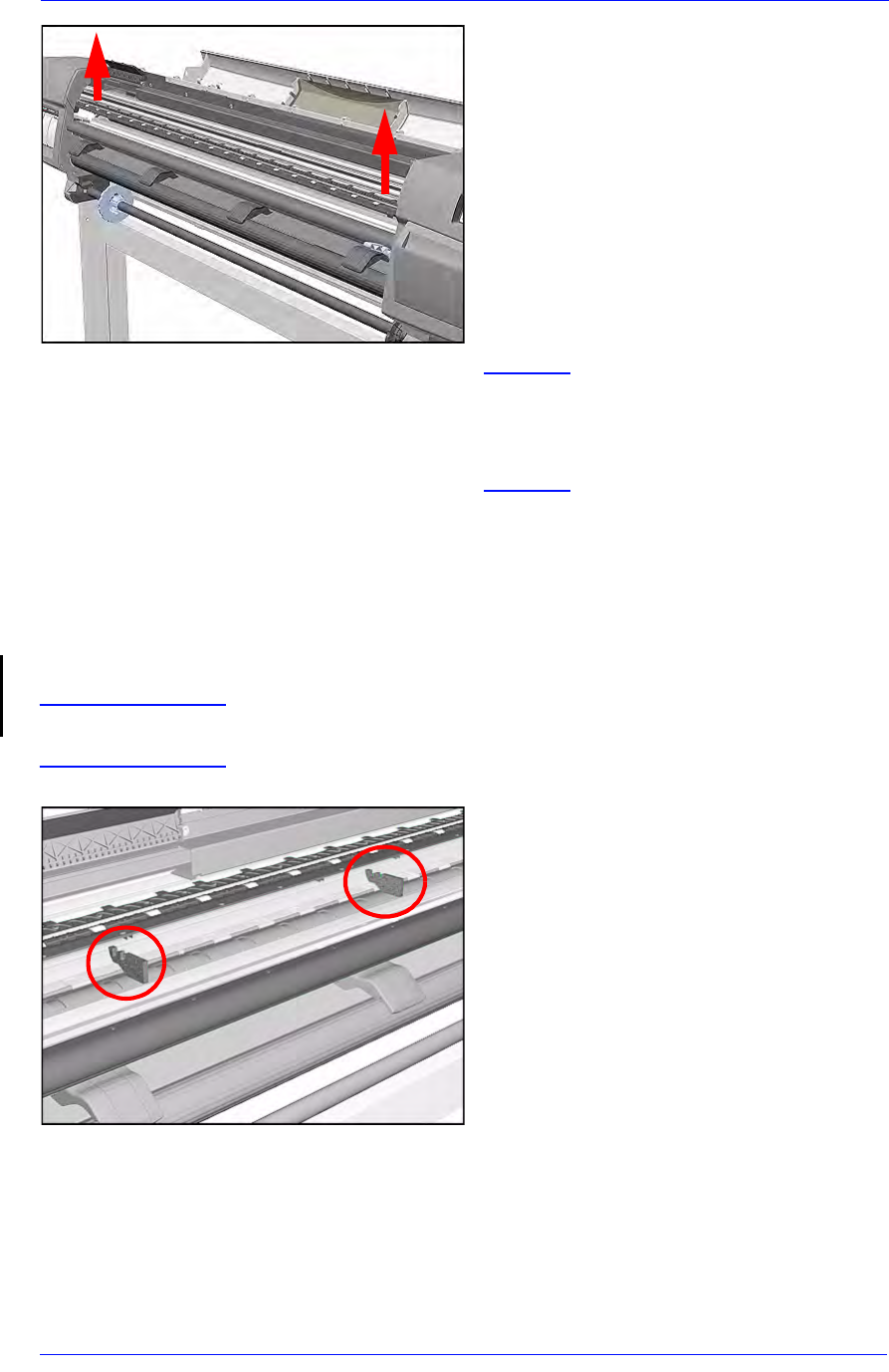

3. Remove the complete Center Platen
Assembly (includes the Overdrive
Assembly and the Cutter guide).
NOTE You must perform the
following Calibrations when
the Center Platen Assembly
is replaced:
Scan Axis Calibration Page 5-7.
Carriage Height Calibration Page
5-18.
Installation of the Center Platen Assembly
WARNING When installing the Center Platen Assembly, make sure the foam
guides under the Platen are placed in their slots as shown below.
