Removal and Installation
8-18
HP DesignJet 5000 and 5500 Series Printers Service Manual
Media Lever Assembly
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.
1. Only applicable to the DesignJet
5000 Series - Remove the Deflector
closest to the Right Cover - Refer to
Page 8-119.
2. Remove the Right Hand Cover - Refer
to Page 8-10.

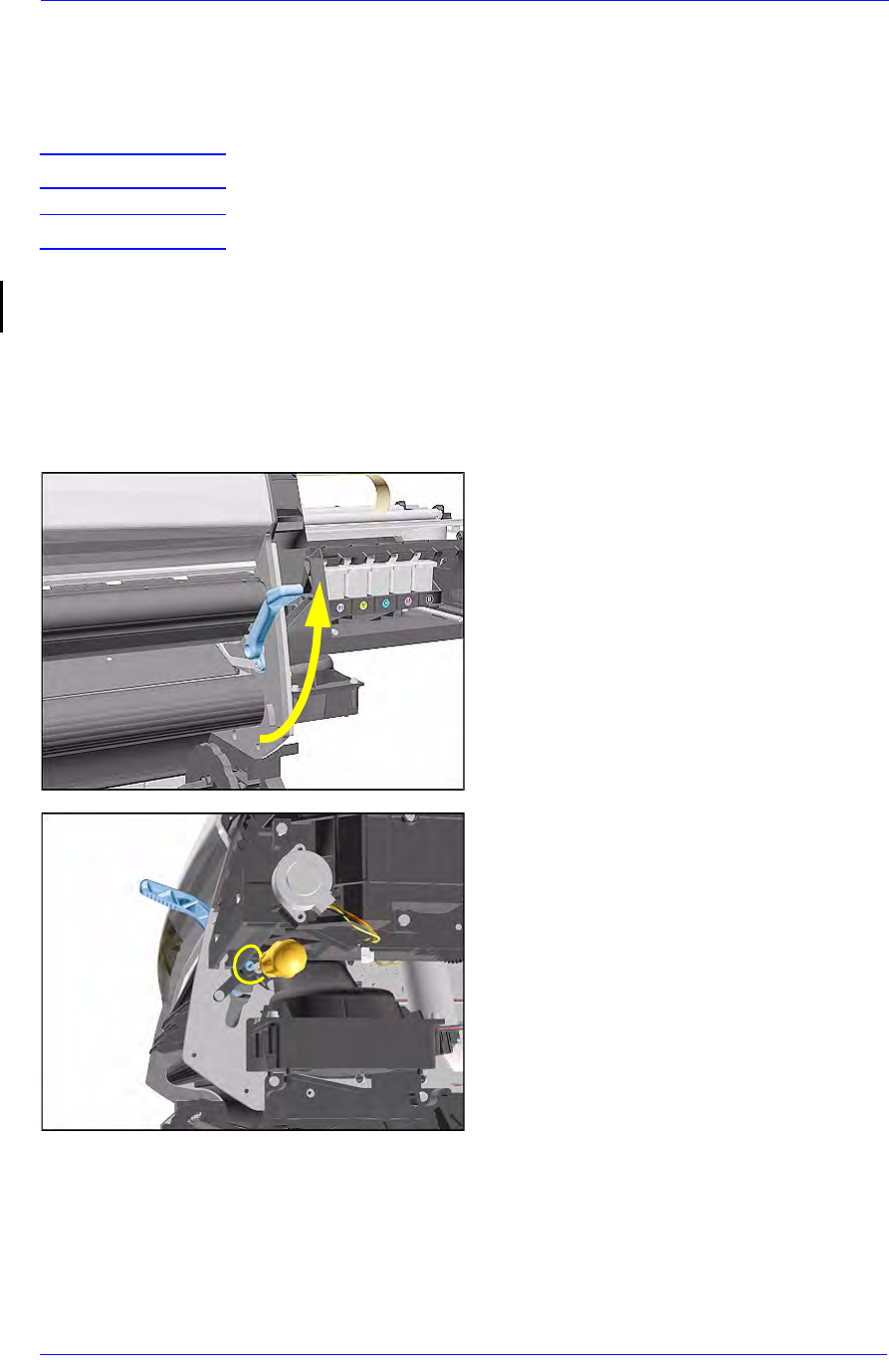

3. Raise the Media Lever.
4. Remove 1 T-15 screw (Type D) from
the support that attaches the Media
Lever to the Sideplate.
