Removal and Installation
8-53
HP DesignJet 5000 and 5500 Series Printers Service Manual
Line Sensor
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.
1. Remove the Carriage Assembly -
Refer to Page 8-46.

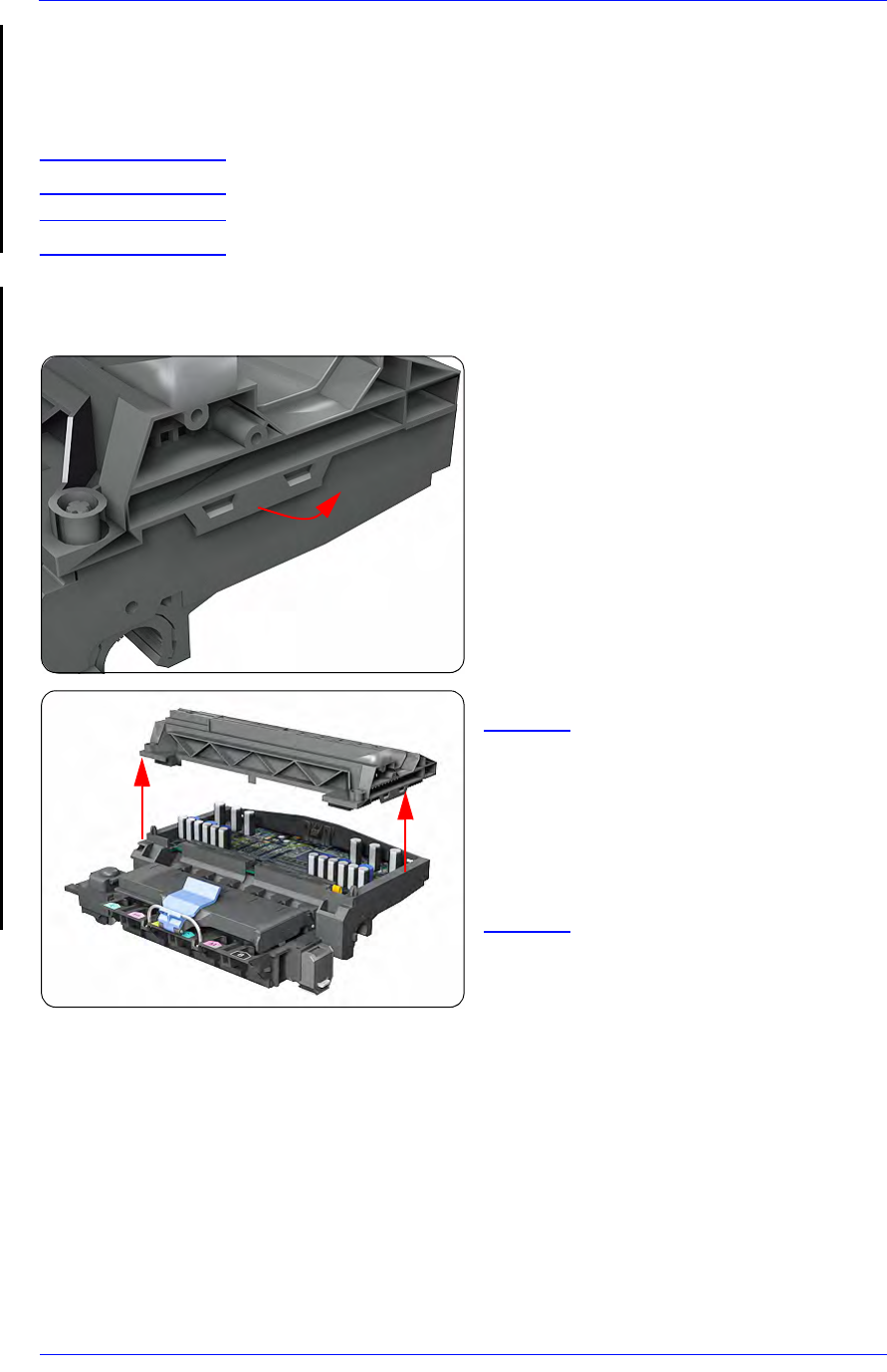

2. Unclip the Carriage Cover from both
sides of the Carriage Assembly.
3. Remove the Carriage Cover.
NOTE Make sure both sides of the
cover are unclipped before
removing. Also make sure
the cover is removed
vertically, if not the Cover
Retaining Pins can be
broken.
