Removal and Installation
8-27
HP DesignJet 5000 and 5500 Series Printers Service Manual

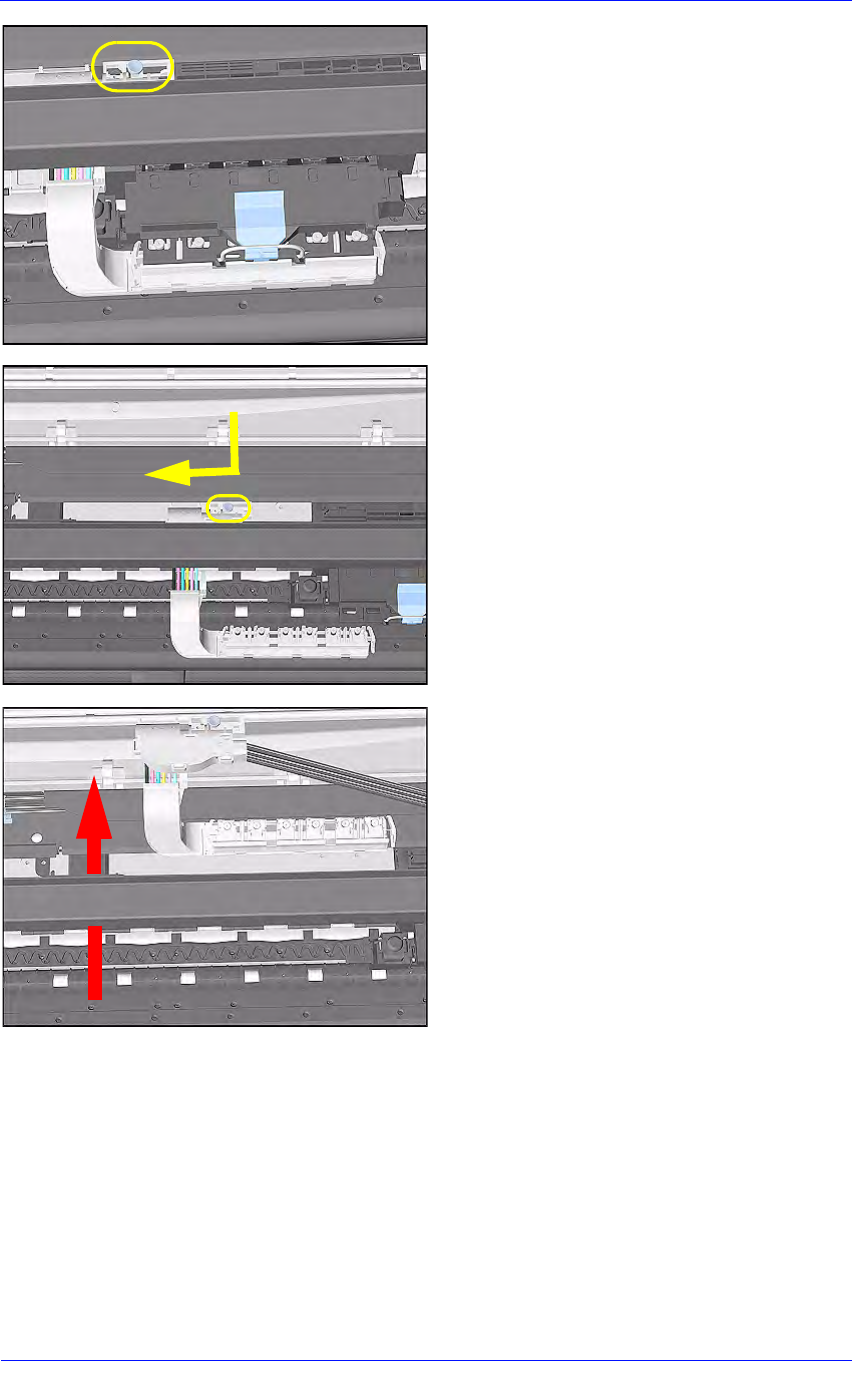

7. Push the button to release the
Printhead Tubes in the Carriage.
8. Release the Retaining Clip by pulling
it away from the holding brackets.
9. Pull the Printhead Tube Connector up
between the two Tube Guides.
