Removal and Installation
8-101
HP DesignJet 5000 and 5500 Series Printers Service Manual
16. Remove the Center Guide - Refer to
Page 8-112.
17. Remove the Pinch-Wheels - Refer to
Page 8-97.

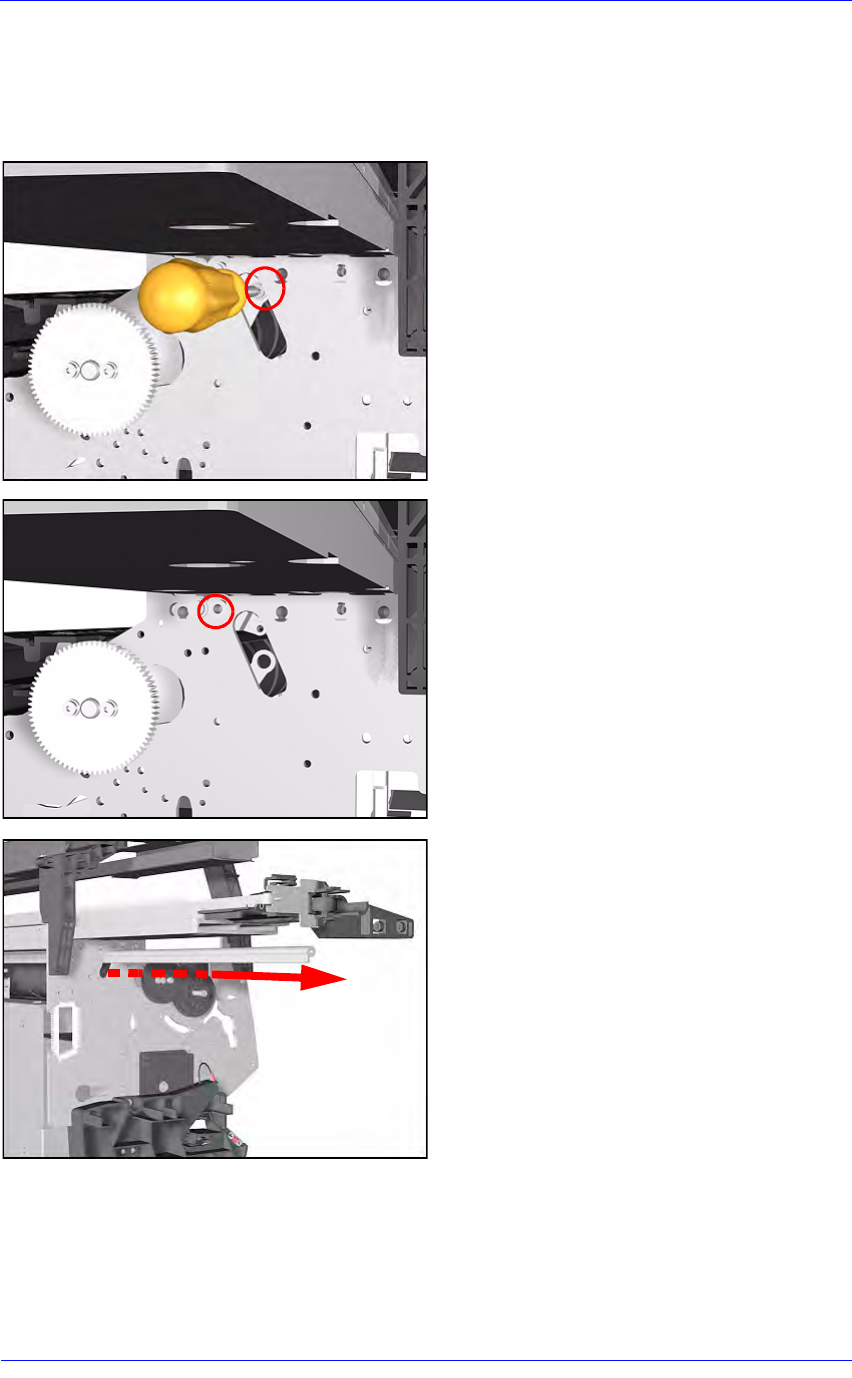

18. Through the slot in the right Sideplate,
remove the T-15 screw (Type H)
retaining the cam lever arm.
19. Remove the T-15 Cam screw (Type
F).
20. Remove the Cam by sliding it through
the slot in the left Sideplate.
