Removal and Installation
8-75
HP DesignJet 5000 and 5500 Series Printers Service Manual

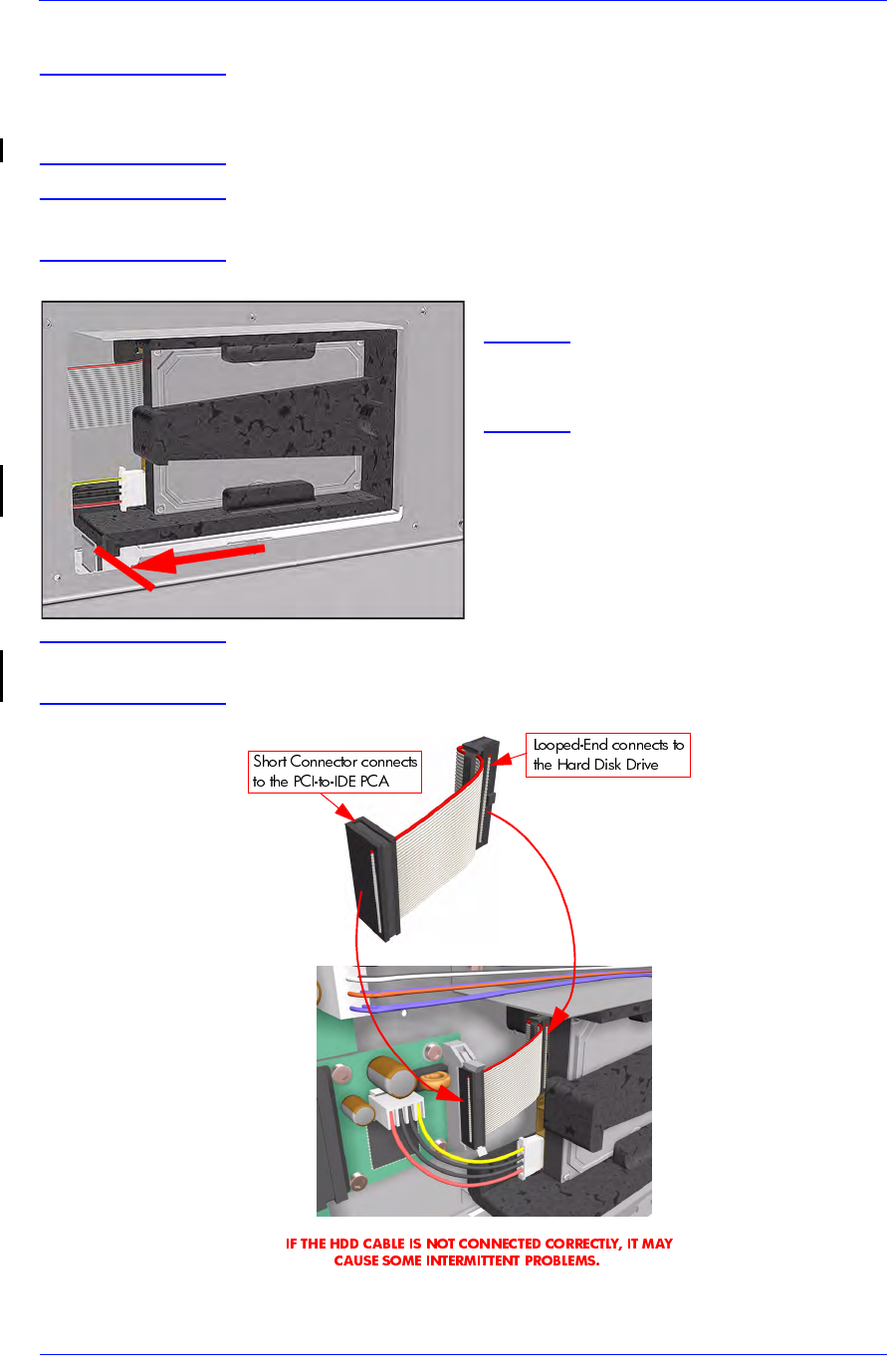

Installation of Hard Disk Drive
NOTE If you replace the Main PCA and the HDD at the same time you
must perform ALL Service Calibrations (Page 5-3)and the
EEROM Setup Service Utility (Page 4-23).
WARNING When Installing the Hard Disk Drive make sure the holder is
placed in the right position so that it cannot move.
NOTE When the Hard Disk Drive is
replaced perform the
following Service Utility:
Backup EEROM (select HDD
replaced) Page 4-30.
NOTE
If you have to replace the HDD Cable, refer to the following
drawing:
