Removal and Installation
8-69
HP DesignJet 5000 and 5500 Series Printers Service Manual
Service Station Assembly
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.
1. Remove the Right Rear Cover - Refer
to Page 8-16.
2. Remove the Right Hand Cover - Refer
to Page 8-10.

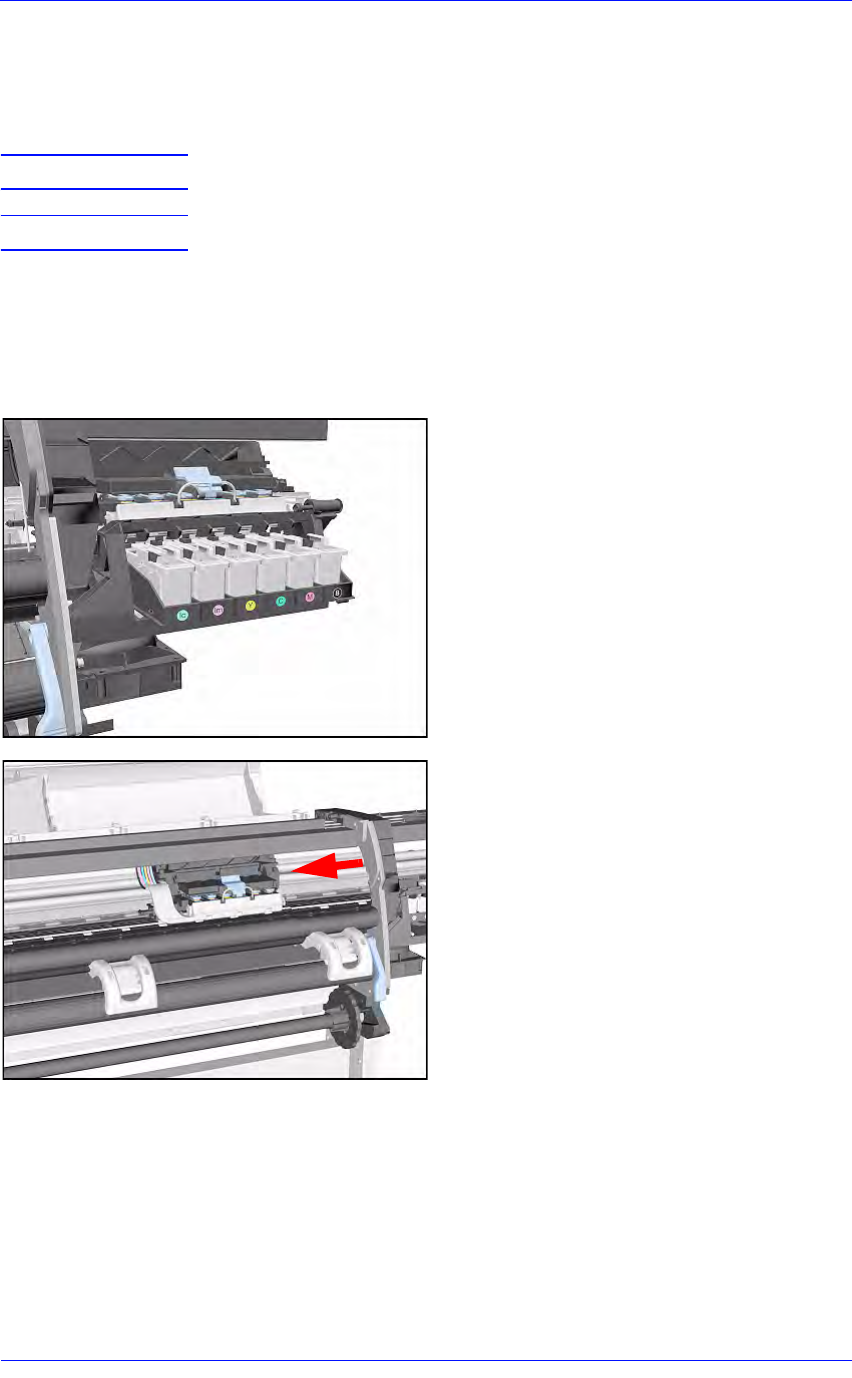

3. Remove the Printhead Cleaners.
4. Manually slide the Carriage out of
the Service Station.
