Removal and Installation
8-92
HP DesignJet 5000 and 5500 Series Printers Service Manual
Installation of the ISS PCA

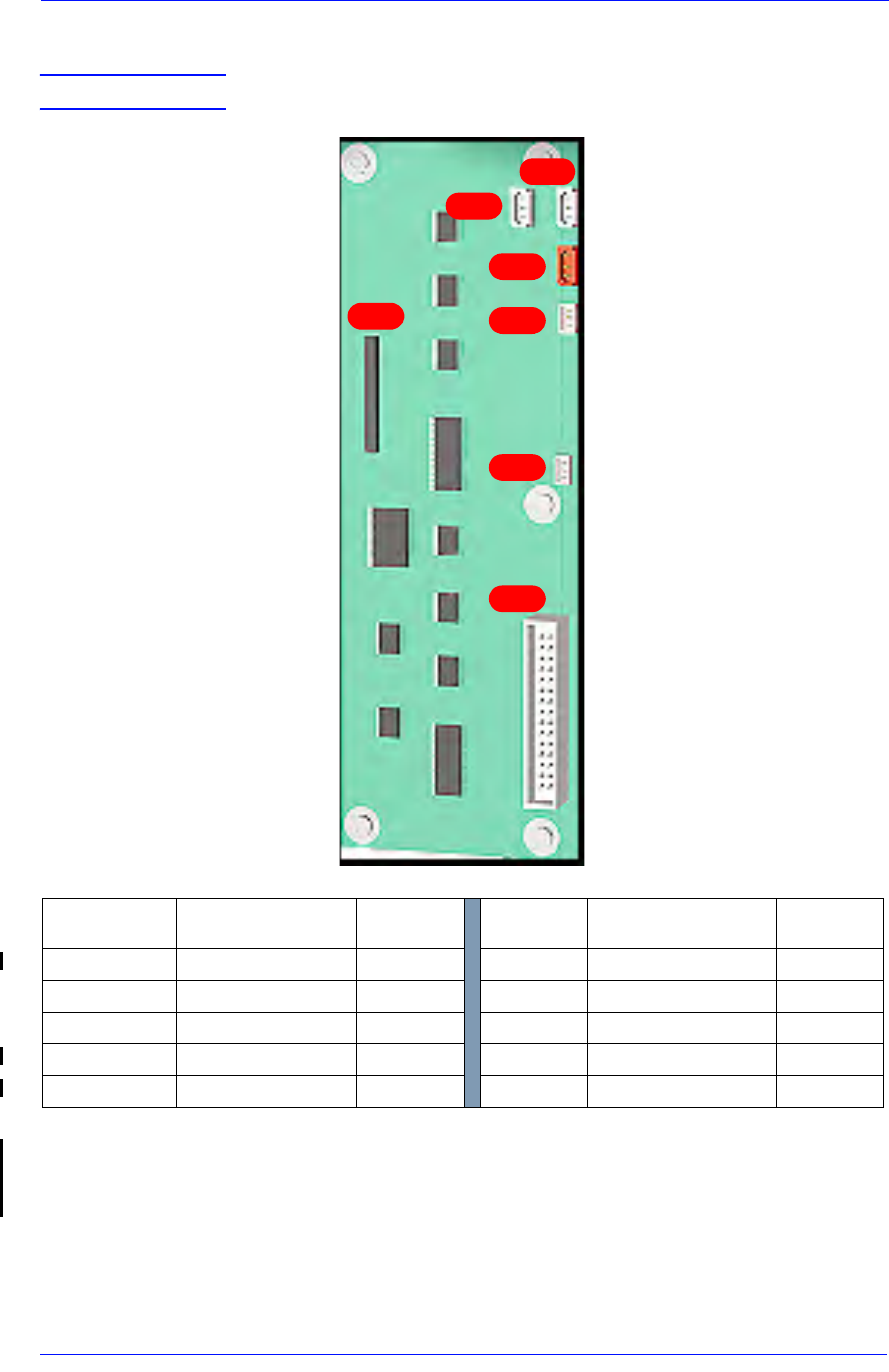

NOTE The ISS PCA connections are illustrated below.
* The Ink LeakDetector has been discontinued so this connector is no longer used.
** There are 2 connectors available for the APS Pump and any one of them can be used.
J Position
Connection Connector
Color
P Position
Connection Connector
Color
J1
ISS Cable white
P2*
Ink Leak Detector white
J3
Main PCA white
P3
APS Temperature white
P4
APS Valve red
P5**
APS Pump white
P6**
APS Pump (Spare) white
P6
P4
P3
J3
P2
J1
P5
