Removal and Installation
8-55
HP DesignJet 5000 and 5500 Series Printers Service Manual
Installation

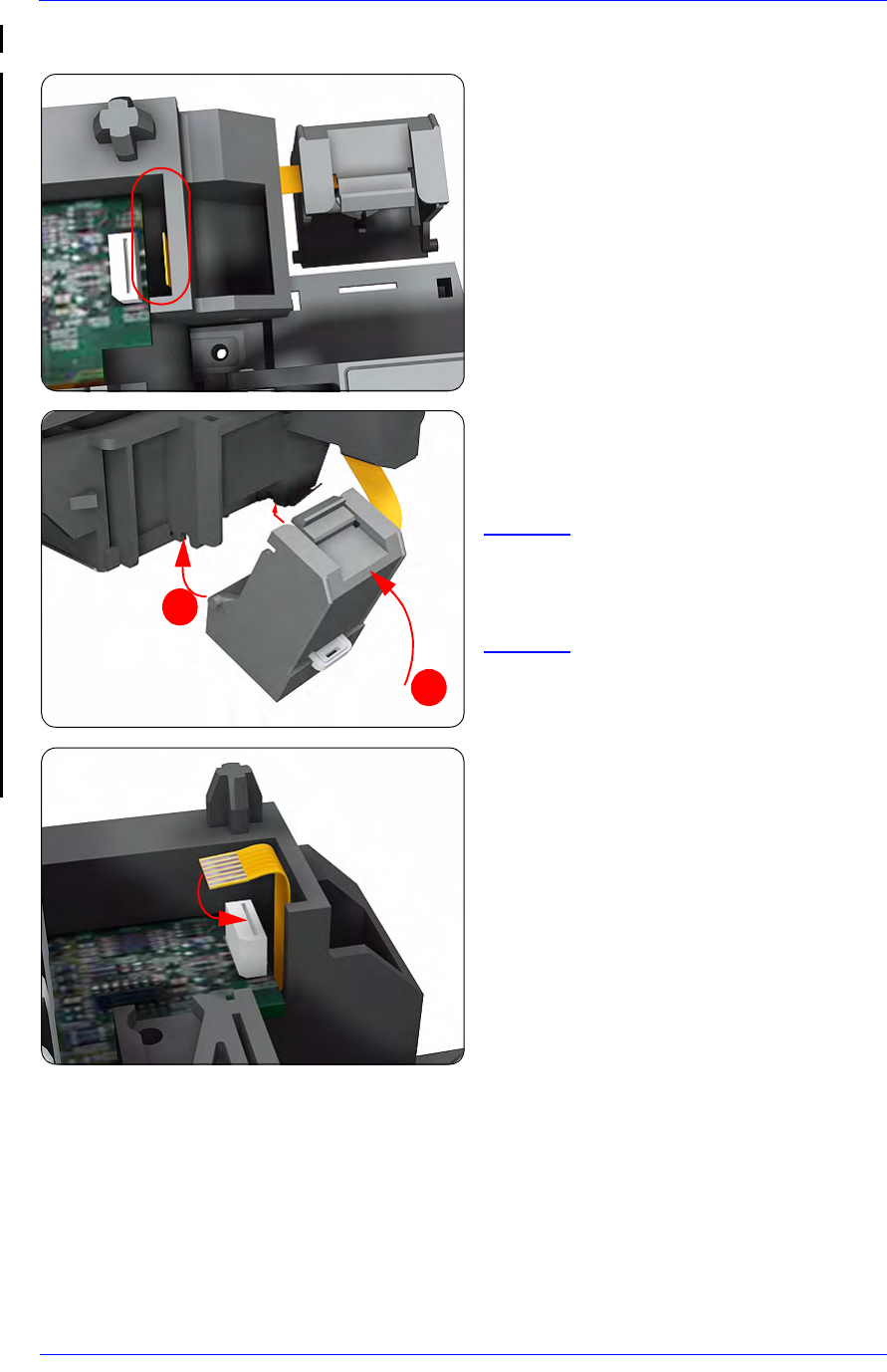

1. When installing the new Line Sensor,
make sure you insert the Line Sensor
Cable through the correct hole (as
highlighted).
2. Install the Line Sensor by first
inserting the 2 locating pins and then
rotating upwards so that the clip locks
into place.
NOTE Make sure the Line Sensor is
clipped correctly and
securely, if not the Line
Sensor will malfunction.
3. Connect the Line Sensor Connector to
the Carriage PCA.
