Service Calibrations
5-19
HP DesignJet 5000 and 5500 Series Printers Service Manual
NOTE During the Carriage Height Calibration procedure the Carriage
Assembly has to be moved along the length of the Printer for
correct calibration. Make sure that the Carriage Assembly is
only ever moved by pulling the Belt and never by direct contact
with the Carriage itself (See Figure 2 below).

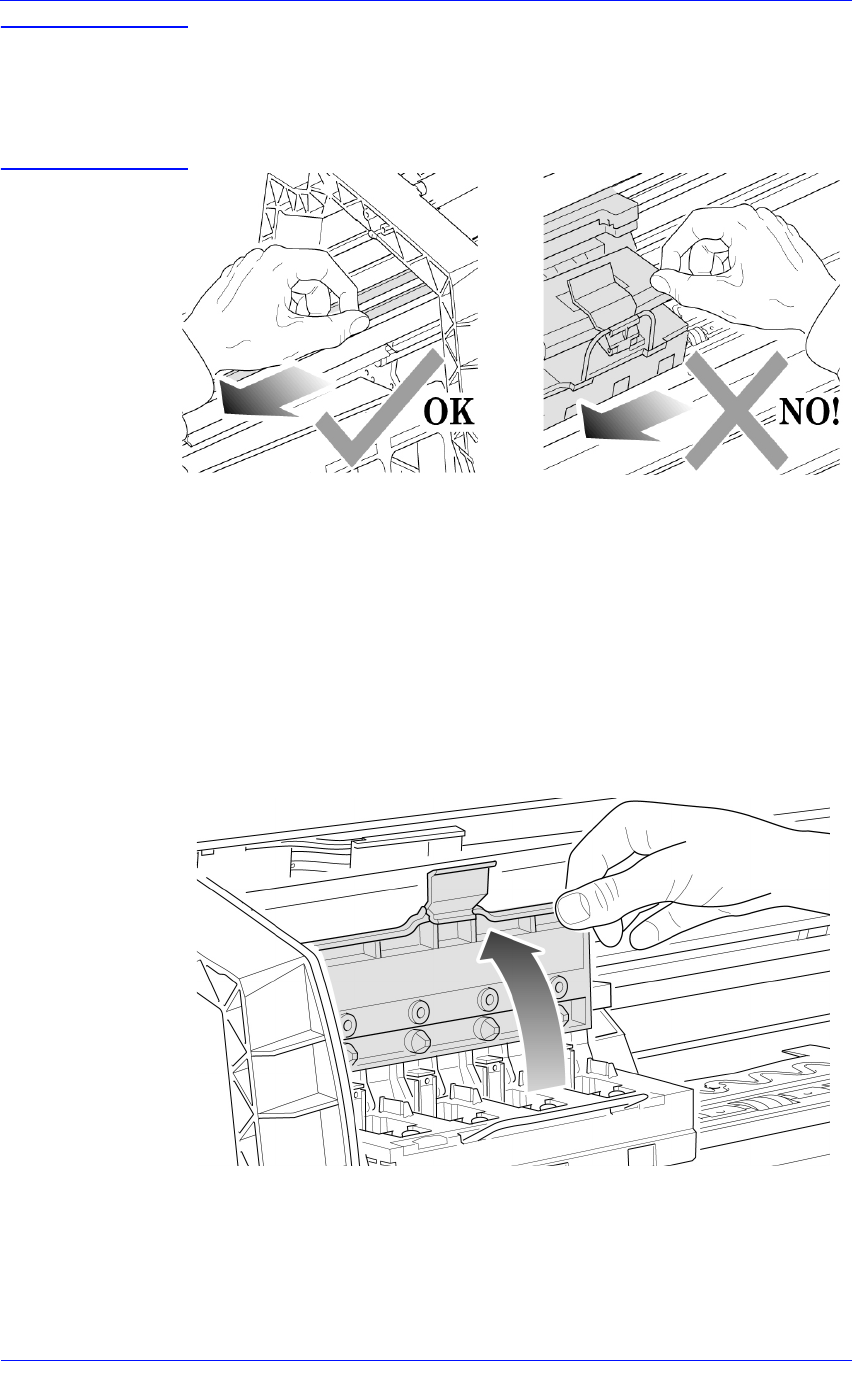

Figure 2:
1. Remove the Top Cover - Refer to Page 8-5.
2. Remove the Back Cover - Refer to Page 8-23.
3. Remove the Top EMC Cover - Refer to Page 8-32.
4. Open the Carriage Cover on the left hand side of the printing area.
Correct:
Incorrect:
never move using Carriage Assemb
ly.
move using the Belt.
