Media Sensor
Removal
WARNING Switch off the Printer and remove the Power Cord.
1. Remove the Top Cover - Refer to
Page 8-5.
2. Remove the Right Rear Cover - Refer
to Page 8-16.
3. Remove the Left Rear Cover - Refer
to Page 8-15.
4. Remove the Back Cover - Refer to
Page 8-23.
5. Remove the Electronics Module -
Refer to Page 8-97.
6. Remove the Lower Right EMC Cover
- Refer to Page 8-32.
7. Remove the Booster Fan for better
access - Refer to Page 8-108.

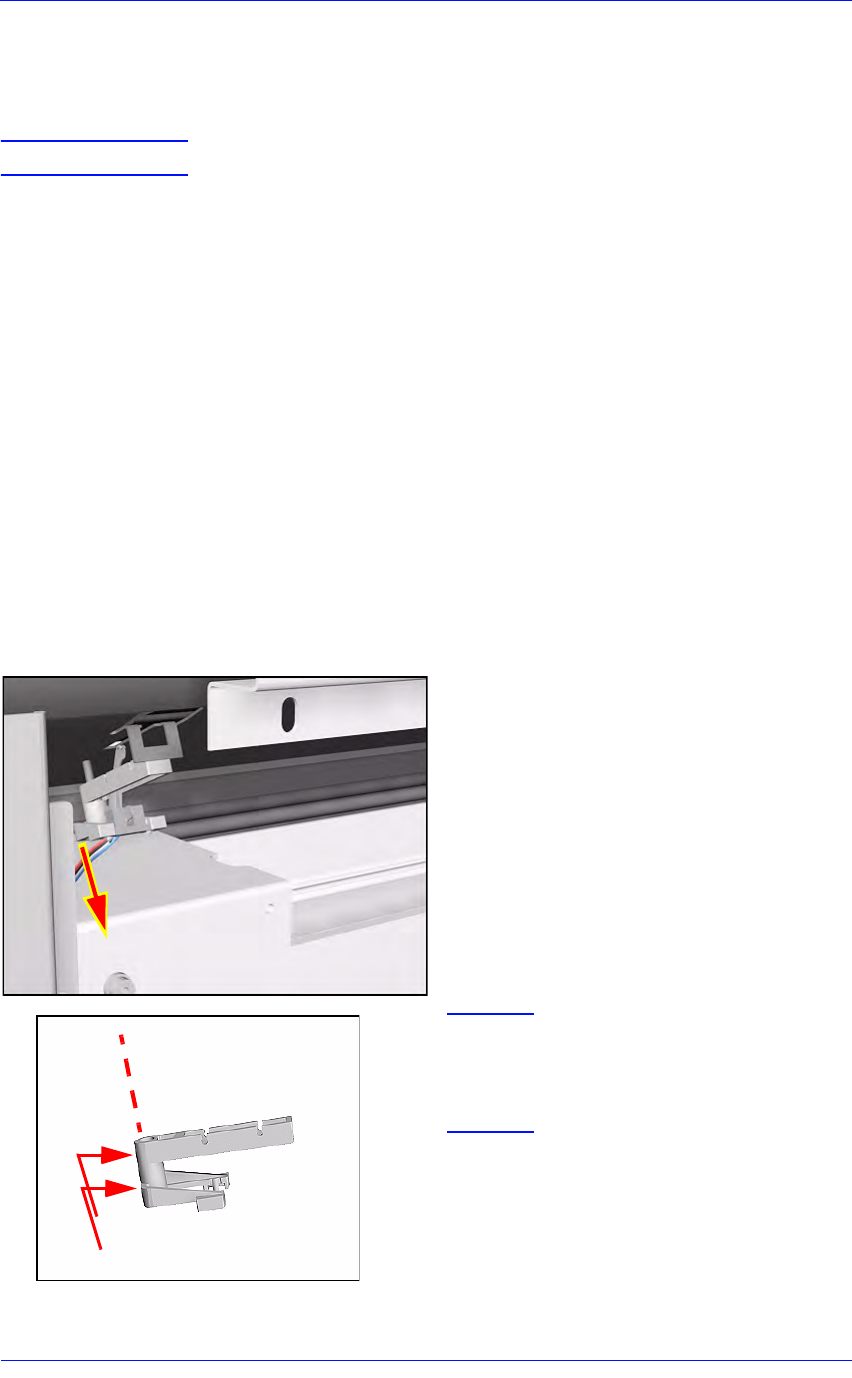

8. Reach under the Center Guide and
carefully remove the Media Sensor
mount by pulling it down gently (as
shown below).
TIP Pull down the Media Sensor
by inserting a finger on each
side of the sensor and pulling
down.
2. Pull down
1. Insert fingers
