Removal and Installation
8-29
HP DesignJet 5000 and 5500 Series Printers Service Manual

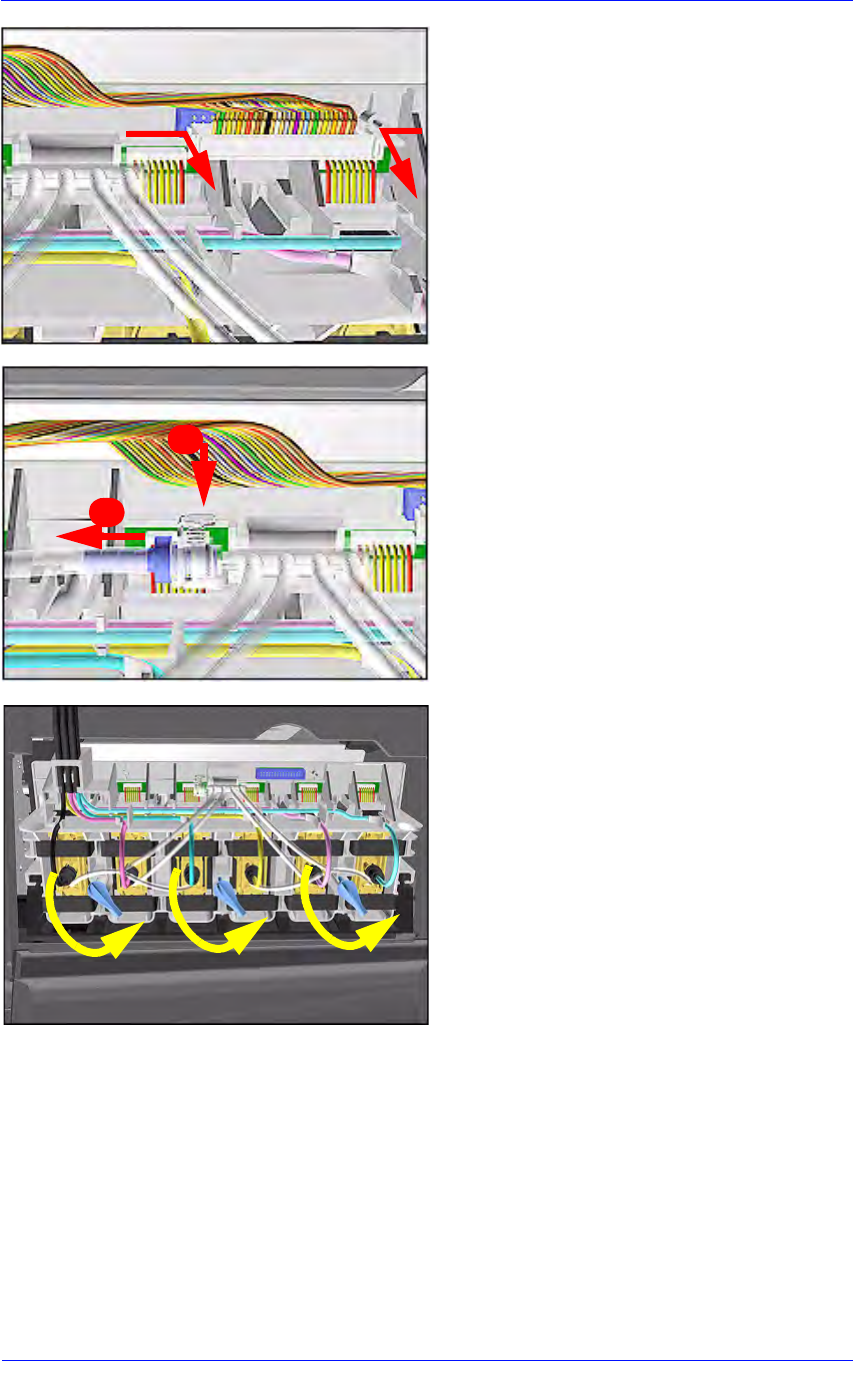

13. Disconnect the Electrical Cable from
the rear of the Ink Cartridge Tube
Connector.
14. Disconnect the Air Tube.
15. Twist the 3 latches at the rear of the
Ink Cartridge Tube Connector and
release the complete Assembly.
2
1
