Removal and Installation

8-38

HP DesignJet 5000 and 5500 Series Printers Service Manual

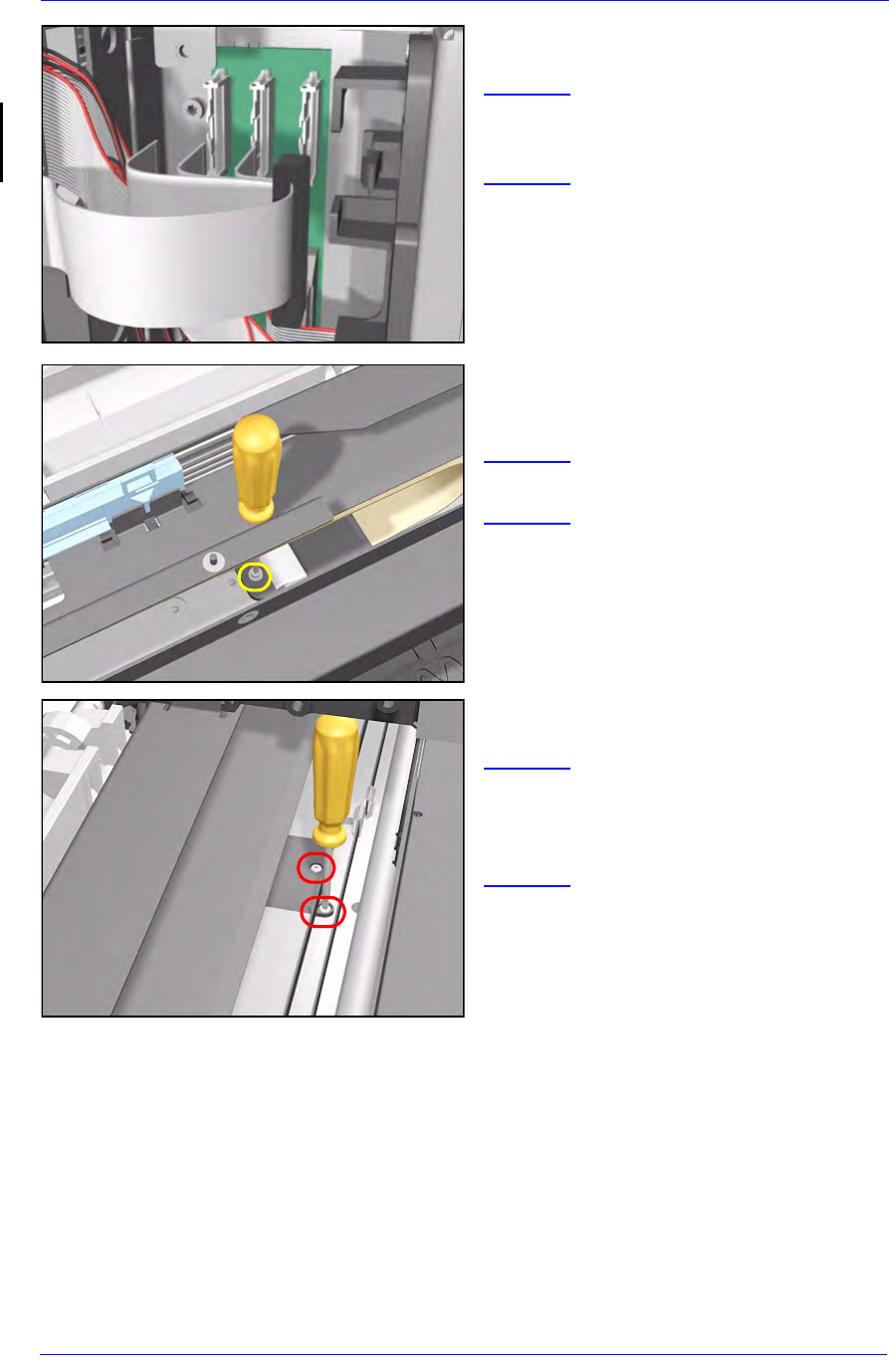

10. Carefully disconnect the Trailing

Cable from the Main PCA.

NOTE Unclip the Trailing Cable

when disconnecting from the

Main PCA.

11. Remove the T-20 screw (Type C)

from the Trailing Cable Clip on the

left.

NOTE There is a hole in the Tube

Guide to access the screw.

12. Remove 2 T-10 screws (Type I) from

the Trailing Cable Clip on the right.

NOTE Take care when removing

and inserting these screws as

they are easily damaged and

not easy to access.
