Removal and Installation
8-60
HP DesignJet 5000 and 5500 Series Printers Service Manual
Cutter Assembly
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.

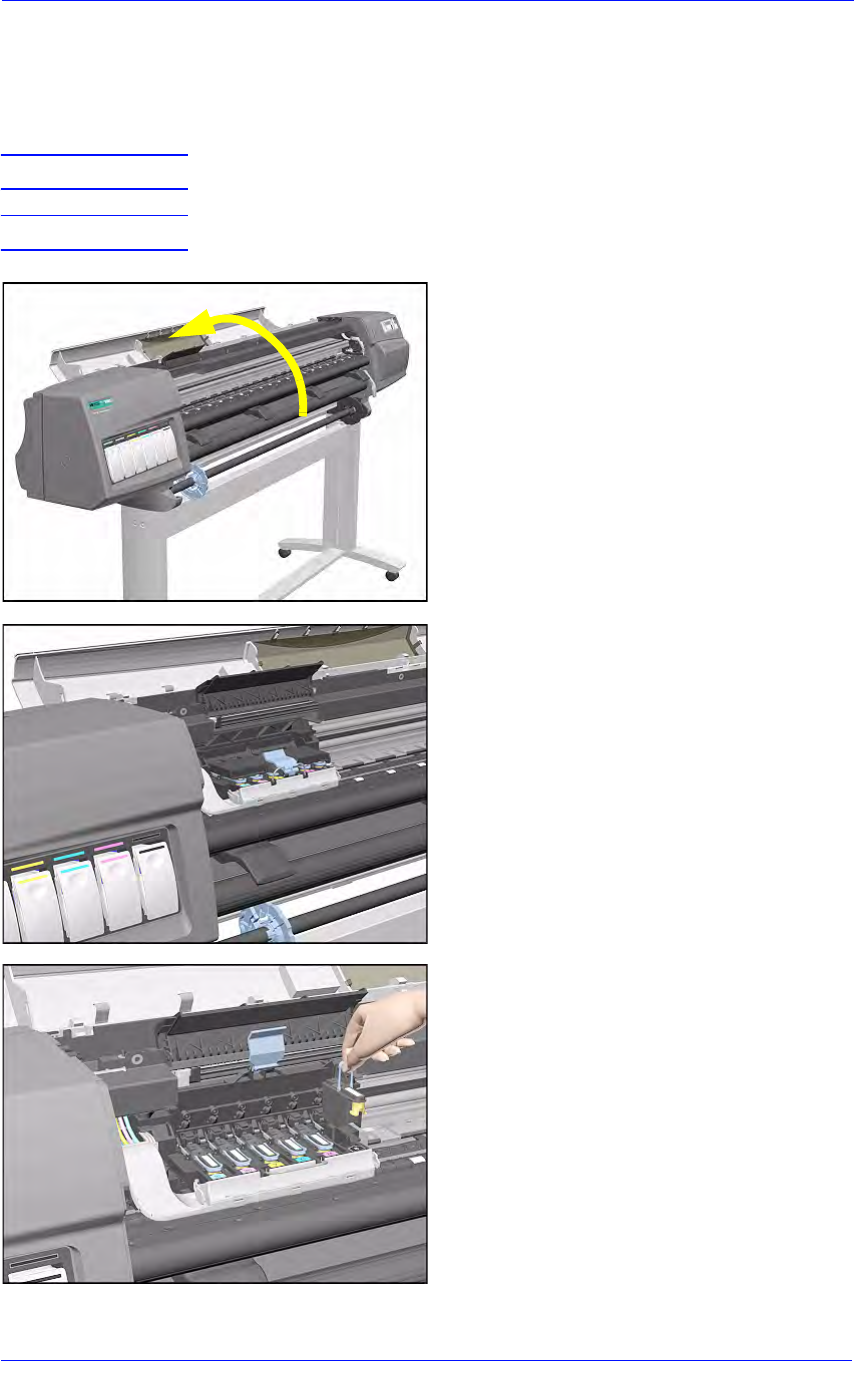

1. Open the Top Cover.
2. Pull the Carriage out along the Printer
to the position shown.
3. Lift up the Carriage Cover and
remove ALL the Printheads and close
the Carriage Cover.
