Removal and Installation
8-111
HP DesignJet 5000 and 5500 Series Printers Service Manual
Entry Roller
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.
1. Remove Left Hand Trim - Refer to
Page 8-22.
2. Remove the Left Hand Cover - Refer
to Page 8-6.
3. Remove Left Rear Cover - Refer to
Page 8-15.
4. Remove the ISS - Refer to Page 8-64.

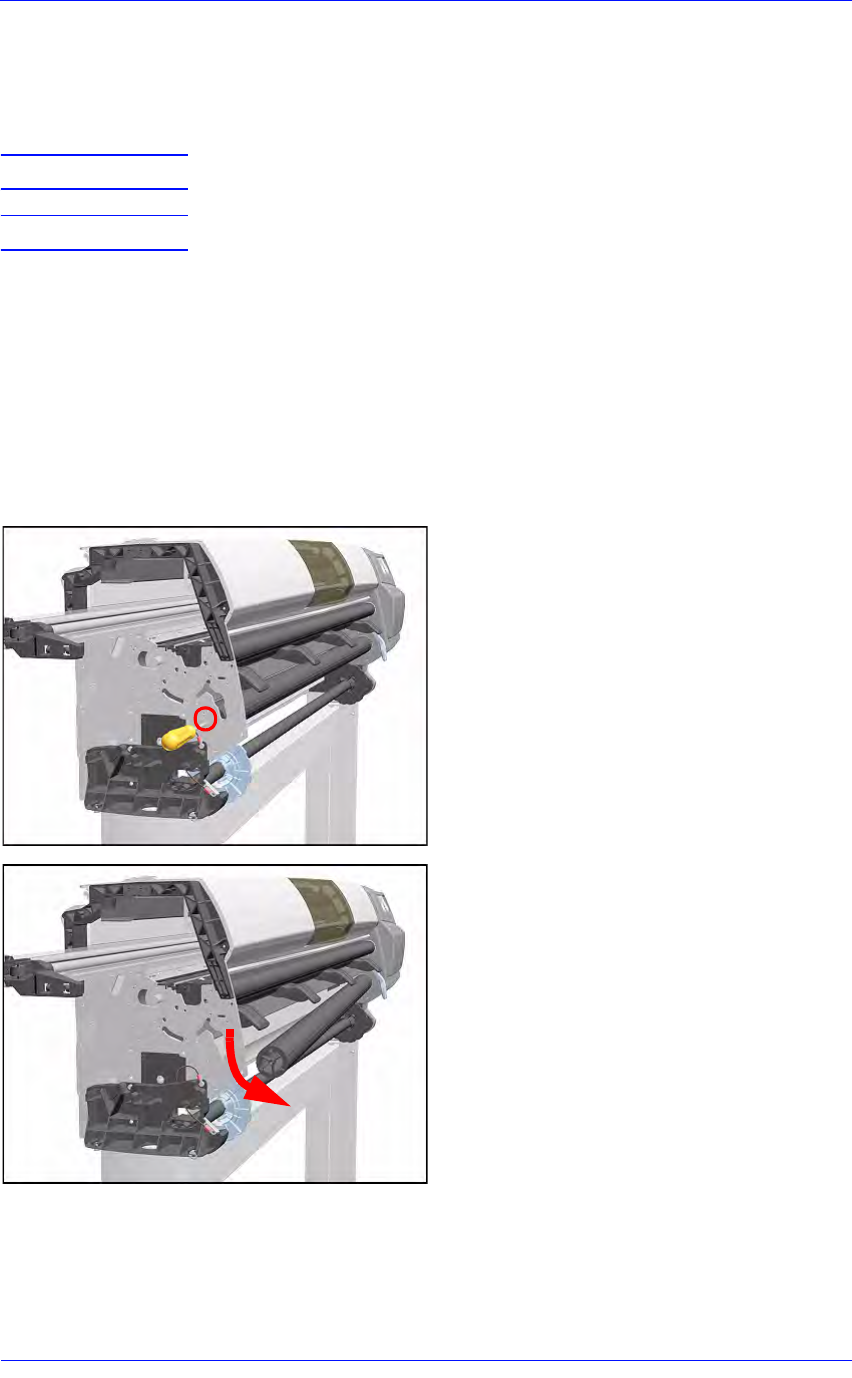

5. Remove one T-15 screw (Type J) that
secures the Entry Roller to the left
Sideplate.
6. Pull out the left side of the Entry
Roller first and then remove
completely.
