Service Calibrations
5-21
HP DesignJet 5000 and 5500 Series Printers Service Manual

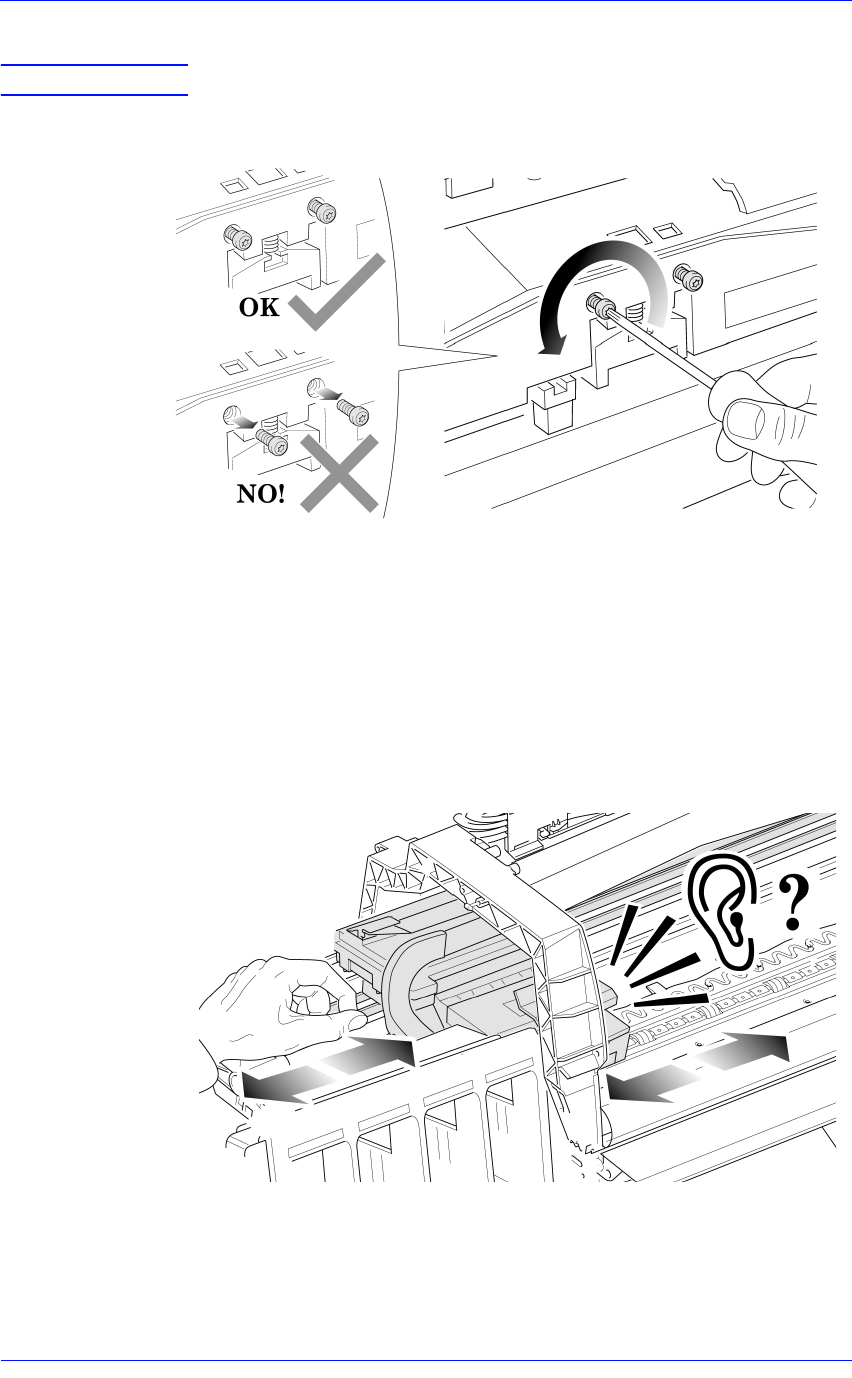

7. Loosen the two T10 screws at the back of the Carriage Assembly.
NOTE The screws should not be removed.
8. Using the Belt, and beginning on the left hand side of the starting
position (where the left hand edge of the paper is positioned when
printing), move the Carriage Assembly back and forth along the
length of the Printer. Listen for a scraping sound: if you hear a
sound already you may proceed directly with step 9, if not you must
lower the Carriage Assembly (step 8), and try again until a scraping
sound is heard.
