HTML page with image map for navigating between views
How you structure and create an image map is of course highly individual. For this example, we
divided the floor plan into four colored zones, and defined an image map area for each zone. This
way, users will be able to simply click a zone in order to go to the view displaying cameras from
that zone.
For instance, the red zone on our image map mirrors the Go to Shared Group2 View2 button from
the previous example: When clicking inside the red zone, users will go to View2 in Group2.

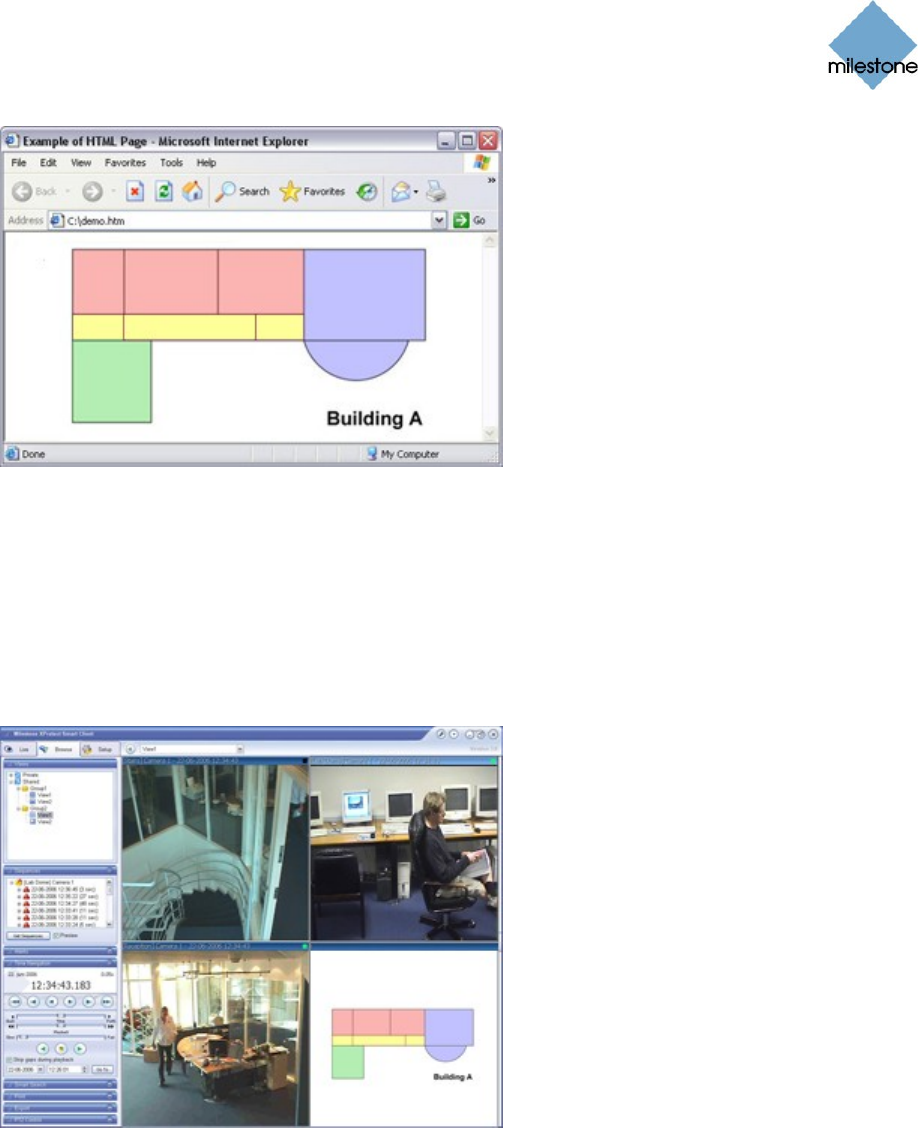

When imported into one of our views, the HTML page looks like this:
Example of HTML page with clickable floor plan imported into a view
Importing the HTML Page
Importing a navigation HTML page into a view is in principle no different from importing any other
type of HTML page into a view in the Smart Client. The two important things to remember are:
The HTML page should be stored locally on the user’s PC
You should make sure HTML scripting is enabled on the HTML page when importing it
To import the HTML page, do the following:
