Instruction Manual
IB-106-340 Rev. 3.0
December 2003
Rosemount Analytical Inc. A Division of Emerson Process Management Startup and Operation with LOI 6-3
Oxymitter 4000
6-5 LOI MENU TREE
This LOI menu for the Oxymitter 4000 is shown
in Figure 6-4. This menu tree is specific to the
Oxymitter 4000. The menu tree will assist in
navigating the LOI.
Menu items in normal text display information,
only. Menu Items in italics permit data entry.
Menu items in bold text are procedures.
Temperatures
SENSOR
DATA
Voltages
O2 Analog % _____%
O2 Analog mA ____mA
Output Values
O2 2.59% LK
normal
%
37260017
(CONTINUED ON
SHEET 2)
O2 Temp _____dgC
O2 Temp-MAX _____dgC
Board Temp _____dgC
Board Temp-MAX _____dgC
O2 Sensor _____mV
O2 Sensor T/C _____mV
Board Temp IC _____mV
CALIBRATION
Start Calib
Abort Calib
Cal Constants
O2 Slope ____ mV/D
O2 Constant ____ mV
O2 Cell Imped ____ ohm
Cal Status
Current Calib
Previous
Failed Calib
Pre O2 Slope _____mV/D
Pre O2 Constant _______mV
Bad O2 Slope _____mV/D
Bad O2 Constant _______mV
Calib Step _______
___Sec.
___H
Calib Time
Next O2 Cal
NOTE
For this menu column, the
selections in are
user configurable. All other
parameters are display only.
Italics
Idle
Recommend Cal
Apply Gas 1
Flow Gas 1
Read Gas 1
Done Gas 1
Apply Gas 2
Flow Gas 2
Read Gas 2
Done Gas 2
Cal Abort
Stop Gas
Purge
NOTE
Use Z pattern
touch command
to unlock menu.

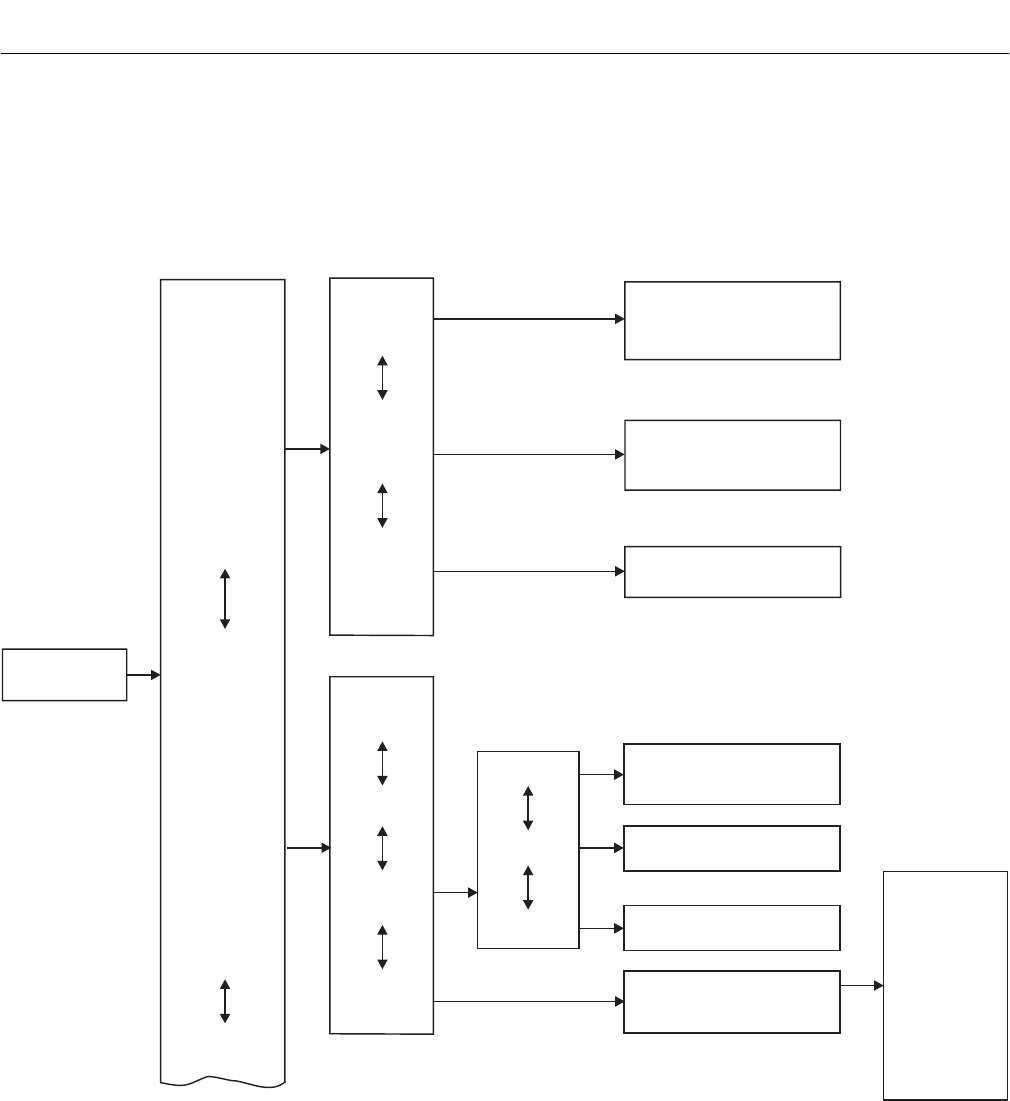

Figure 6-4. Menu Tree for Local Operator Interface on the Oxymitter 4000 (Sheet 1 of 2)
