Oxymitter 4000
DUCT
STACK
GASES
CALIBRATION
GAS
ADAPTER PLATE
LINE
VOLTAGE
LOGIC I/O
INSTRUMENT
AIR SUPPLY
(REFERENCE AIR)
PRESSURE
REGULATOR
FLOWMETER
STANDARD
OXYMITTER 4000
OXYMITTER 4000
OXYMITTER 4000
4TO20mA
SIGNAL
SPS 4000 SINGLE PROBE
AUTOCALIBRATION OPTION
(WITH REFERENCE AIR OPTION)
ADAPTER
PLATE
STACK
DUCT
GASES
4-20 mA SIGNAL, RELAY
OUTPUTS, AND REMOTE
CONTACT INPUT
INSTRUMENT AIR SUPPLY
(REFERENCE AIR)
LINE
VOLTAGE
IMPS 4000 MULTIPROBE
AUTOCALIBRATION OPTION
IMPS 4000
REFERENCE AIR
CALIBRATION GAS
ADAPTER PLATE
STACK
DUCT
GASES
CALIBRATION GAS 1
CALIBRATION GAS 2
INST.AIR
SUPPLY
LINE VOLTAGE
4TO20mA
SIGNAL
REMOTE
ELECTRONICS
REMOTE
ELECTRONICS
LOGIC I/O
LINE VOLTAGE
REMOTE
ELECTRONICS
CALIBRATION GAS 1
CALIBRATION GAS 2
CALIBRATION GAS
REFERENCE AIR
37260006

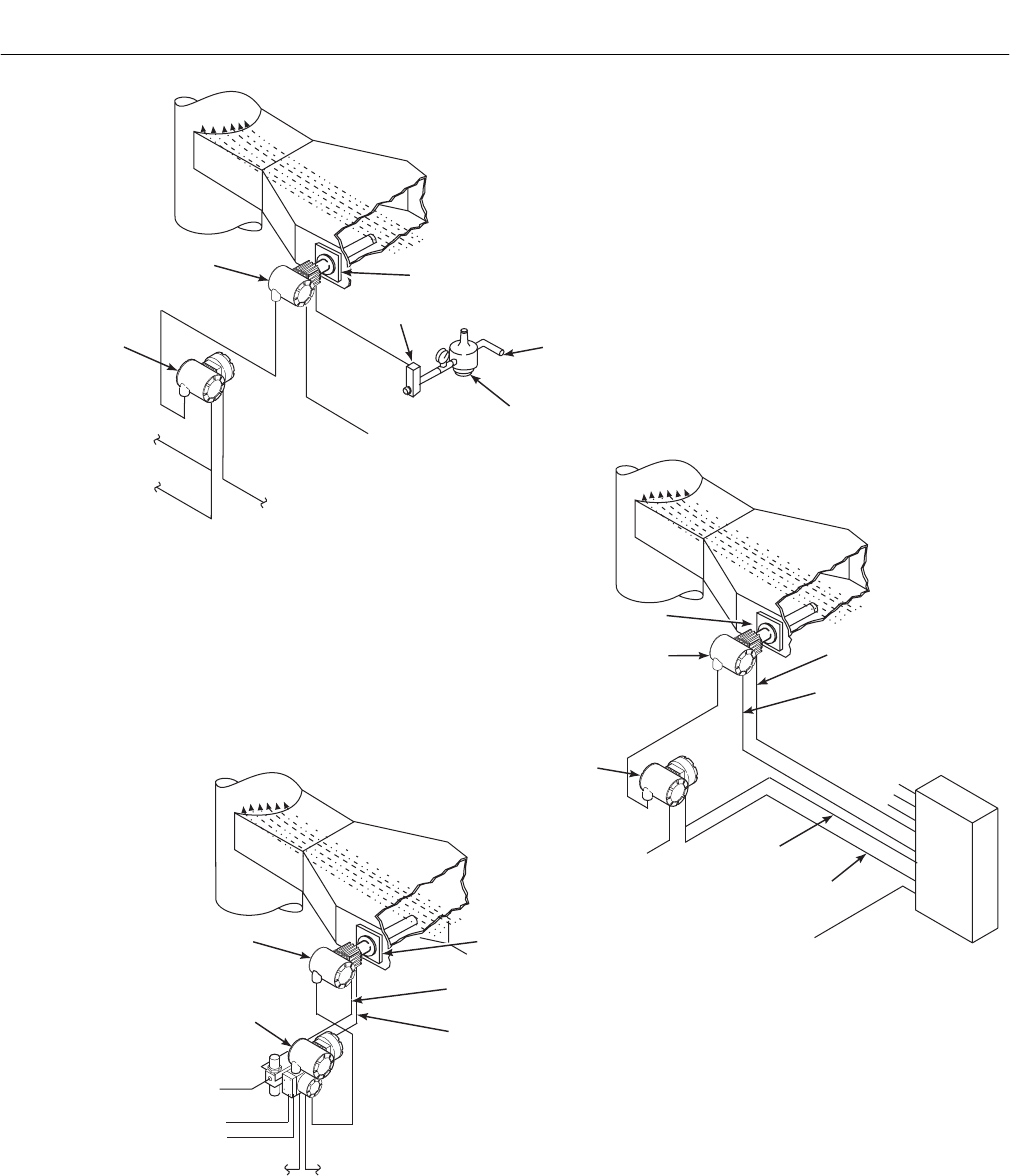

Figure 1-8. Typical System Installation – Oxymitter 4000 with Remote Electronics
