Alarms
O2 Heater Open

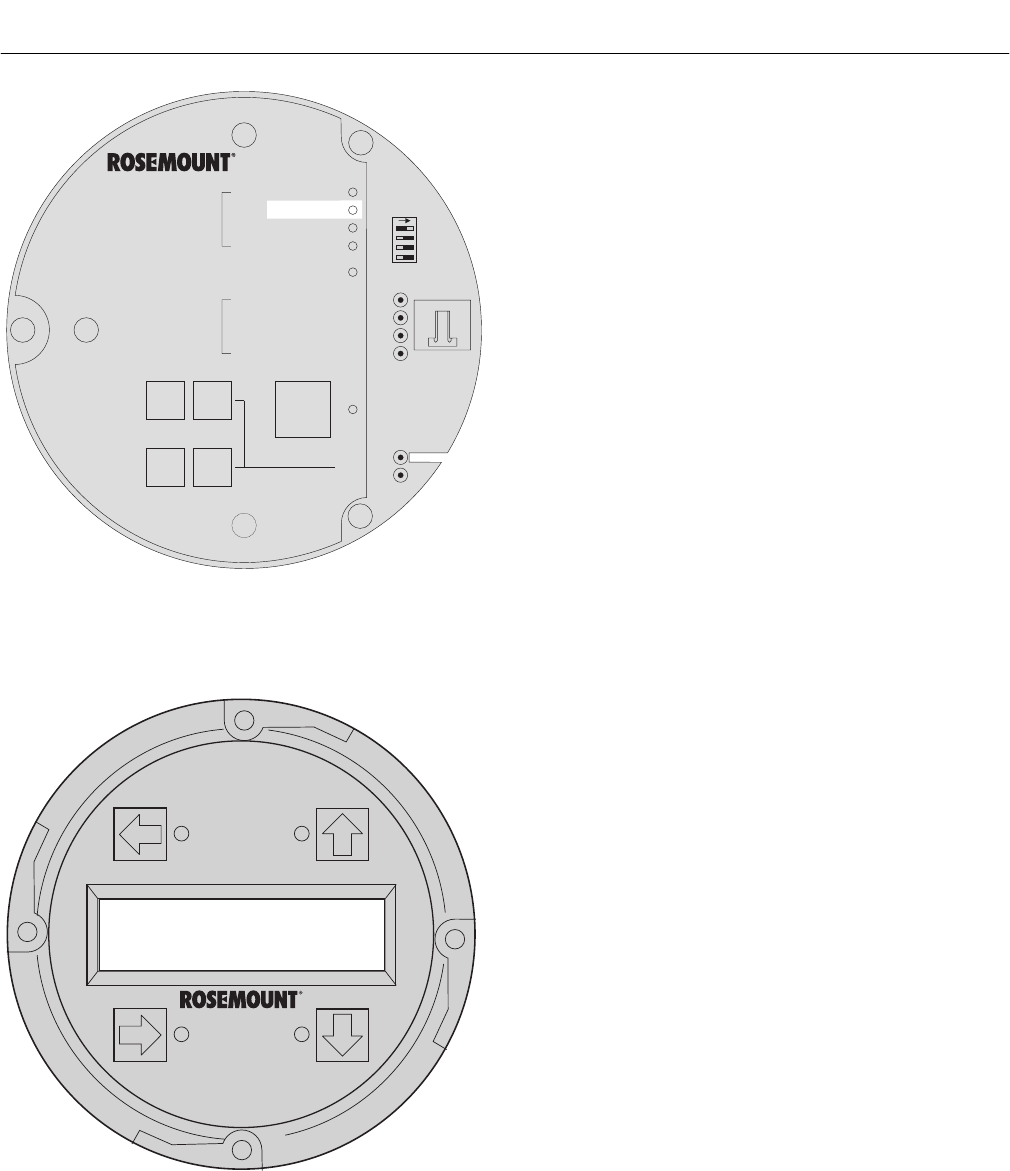

Figure 8-7. Fault 5, Open Heater
e. Fault 5, Open Heater
Figure 8-7 shows the electronic assembly
for an Oxymitter 4000 with a membrane
keypad (upper view) and an Oxymitter 4000
with an LOI (lower view).
Membrane Keypad. When Fault 5 is de-
tected, the HEATER LED flashes once,
pauses for three seconds, and repeats.
1. Remove power.
2. Remove the electronic assembly per
paragraph 9-4d, Electronic Assembly
Replacement.
3. Using a multimeter, measure across
the heater connector J8.
4. The measurement should be approxi-
mately 72 ohms. If the heater is open,
see paragraph 9-4h, Heater Strut
Replacement.
LOI. When Fault 5 is detected, the LOI dis-
plays the “O2 Heater Open” message.
1. Remove power. Unscrew and remove
the LOI module from the electronic as-
sembly.
2. Perform the diagnostic steps 2 through
4 shown for the membrane keypad.
