48 F300S/F300SQ Ultraviolet Lamp System
Multiple-Unit Programming and Connections
Programming and connections for multiple-unit systems are summarized in Figure 13.
Typically, one unit will operate as the MASTER and all others as slaves to the
ON/OFF commands of this Master unit. Refer to detailed descriptions in Chapter 4,
“Operation” of this manual.

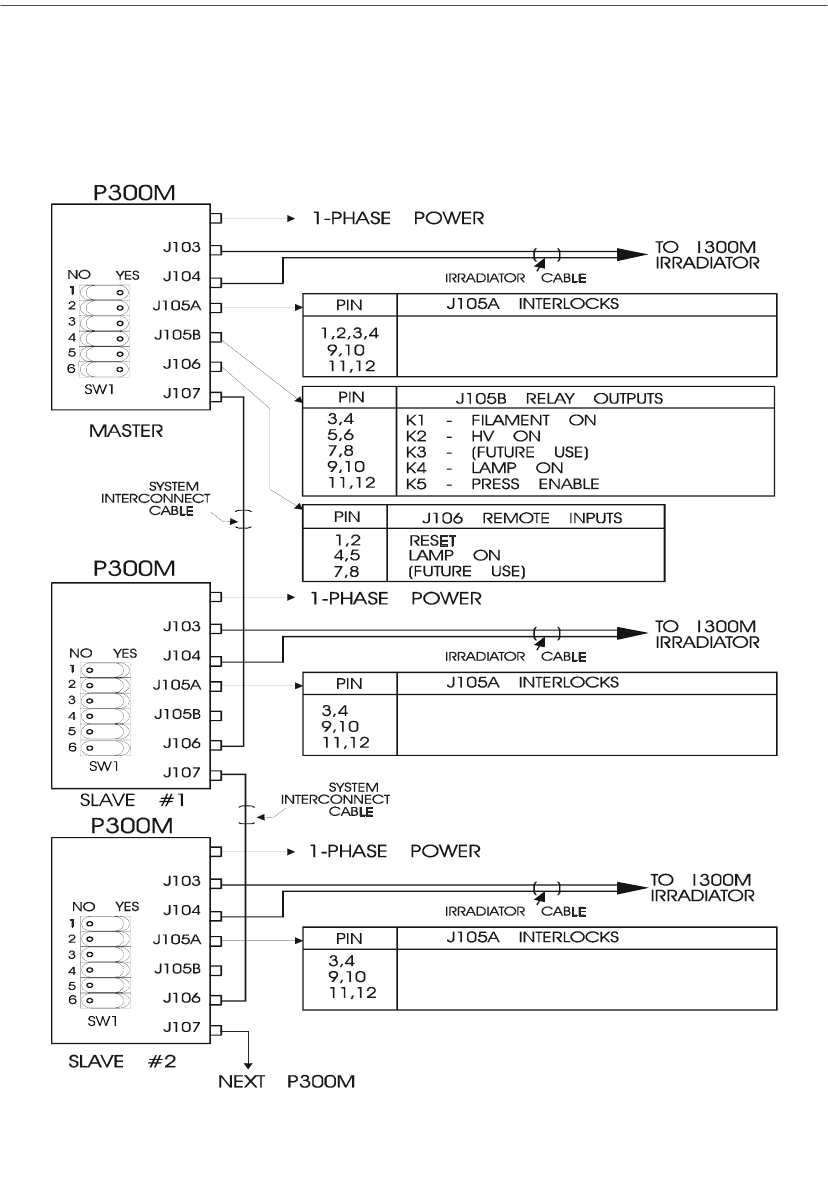

Figure 13. F300S/F300SQ Multiple Unit Programming & Connections
F3q0011
RF DETECTOR
EXT. INTERLOCK (JUMPERED)
SYSTEM BLOWER (JUMPERED)
RF DETECTOR (JUMPERED)
EXT. INTERLOCK (JUMPERED)
SYSTEM BLOWER (JUMPERED)
RF DETECTOR (JUMPERED)
EXT. INTERLOCK (JUMPERED)
SYSTEM BLOWER (JUMPERED)
