Instruction Manual
IM-106-880C, OI
September 2009
7-63
Hazardous Area OCX 8800
• From the list, select “Add Device Definition”... This should give you a
“Browse for folder” selection box. Browse to the directory that contains
the 7 files needed to “register” a new device with DeltaV. These file will
consist of 3 *.dll files, *.sym, *.ffo, *.fhx and *.reg file. The files probably
will be on a floppy disk or a CD-ROM that accompanies your device. On
CD-ROMs delivered together with Emerson Process Management
analyzers the files are located in the directory \Fieldbus. Dependent on
the existent system use the files of the appropriate subdirectory.
• After answering “yes“ to the first prompt, DeltaV will start the
installation.

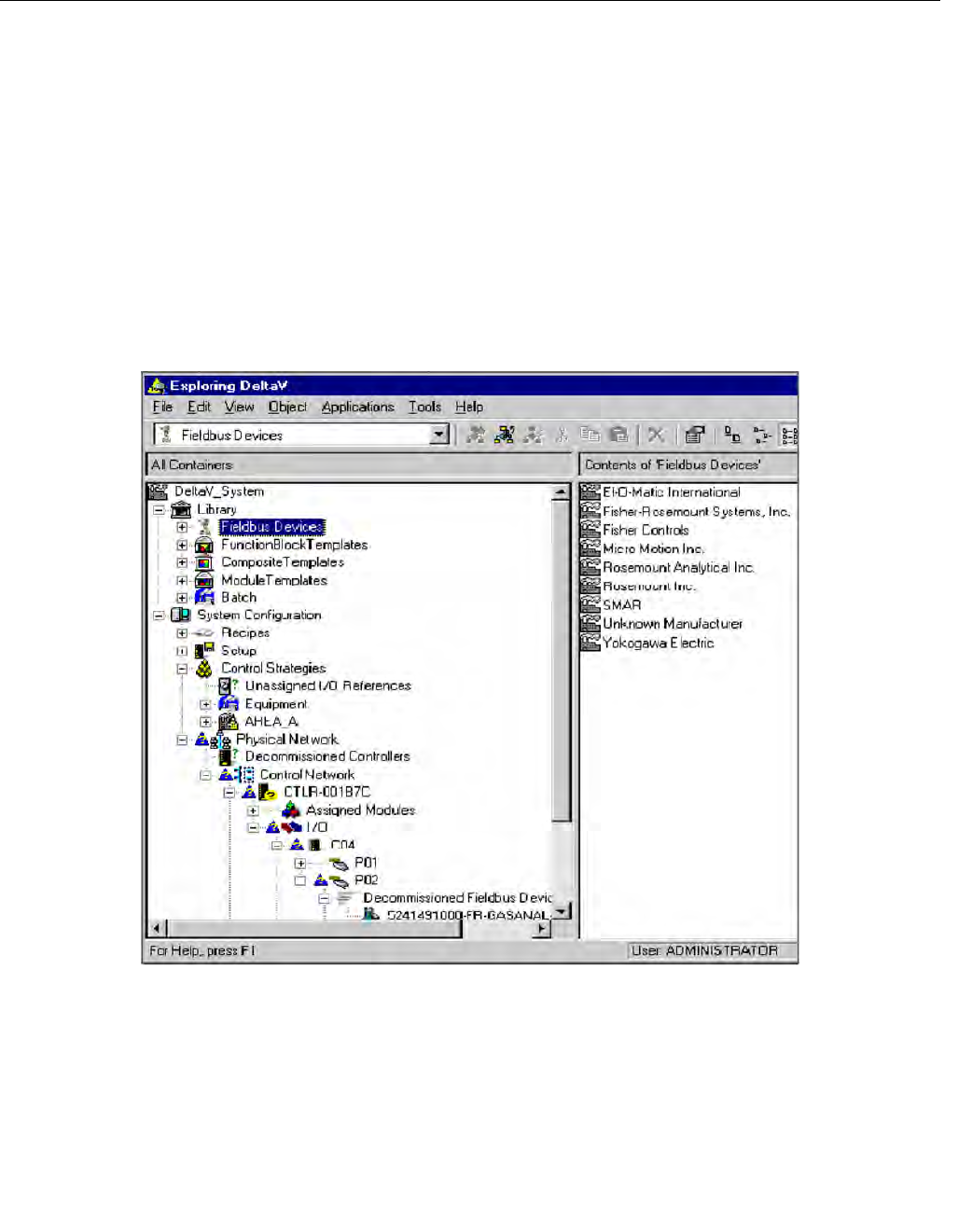

Figure 7-31 shows the “Exploring DeltaV“ screen for reference.
Figure 7-31. DeltaV Explorer
