18
A
R
M
S

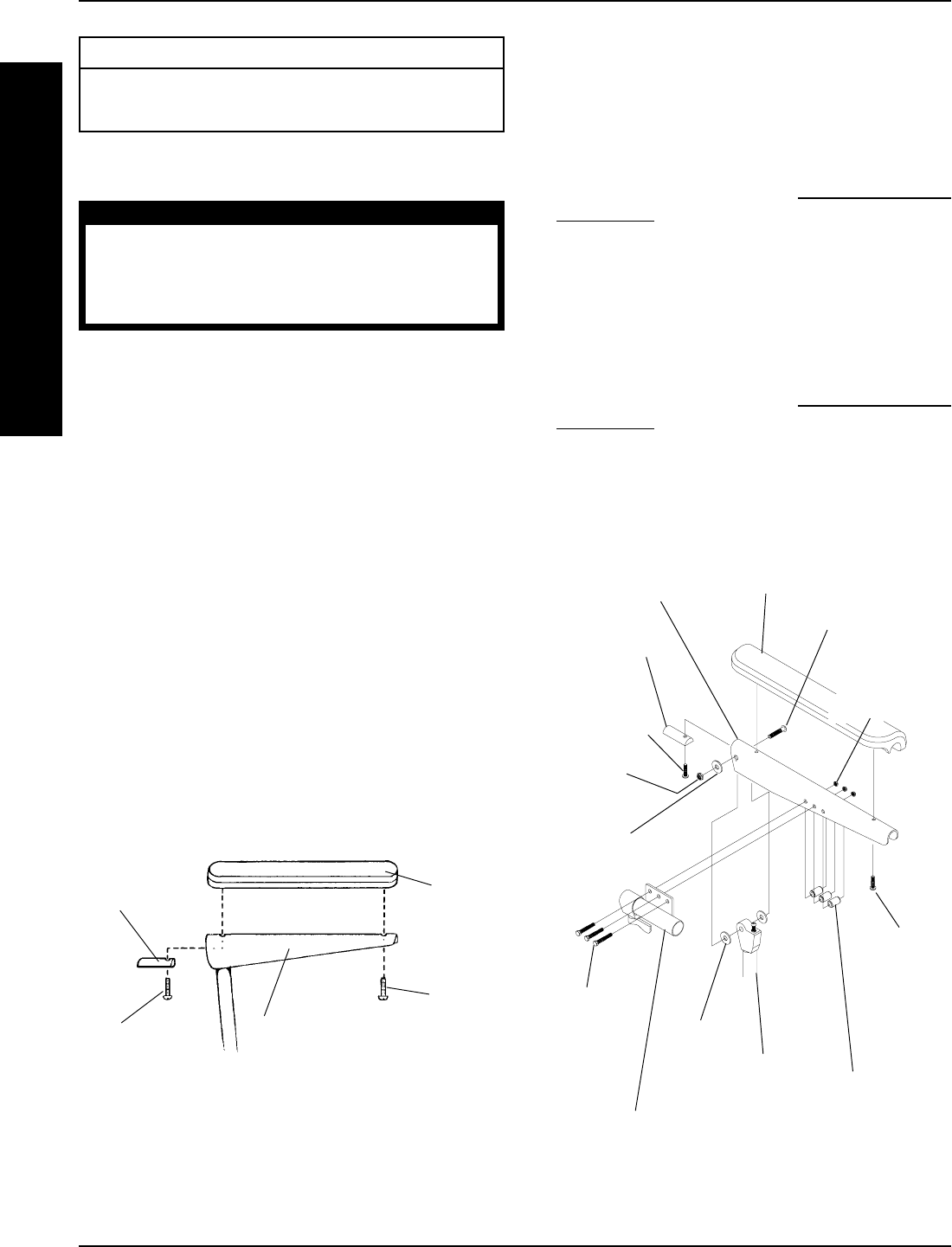

ARMSPROCEDURE 4
REPLACING ARMREST PADS
(FIGURE 1)
1. Remove the mounting screws that secures the front
of the armrest pad to the armrest plate.
2. Remove the mounting screw that secures the rear of
the armrest pad and armrest insert to the armrest
plate.
3. Remove the existing armrest pad and position the
new armrest pad on the armrest plate.
4. Line up the mounting holes in the armrest insert, arm-
rest plate and new armrest pad.
5. Reinstall the rear mounting screw through the arm-
rest insert, armrest plate and armrest pad and tighten
securely.
6. Reinstall the front mounting screw into the armrest
plate and new armrest pad and tighten securely.
Armrest
Insert
Mounting
Screw
Armrest
Pad
Armrest Plate
FIGURE 1 - REPLACING ARMREST PADS
Mounting
Screw
REPLACING ARMREST PLATE
(FIGURE 2)
1. If necessary, remove the three (3) hex bolts, spacers
and locknuts that secure the joystick mounting bracket
to the armrest plate.
2. Remove armrest pad. Refer to
REPLACING ARM-
REST PADS in this procedure of the manual.
3. Remove the lug bolt, washers and locknut that secure
the existing armrest plate to the seat frame assembly.
4. Position the new armrest plate on the seat frame as-
sembly and secure with the lug bolt, washers and lock-
nut. Refer to FIGURE 2 for correct hardware orienta-
tion.
5. Reinstall armrest pad. Refer to
REPLACING ARM-
REST PADS in this procedure of the manual.
6. If necessary, reinstall the three (3) hex bolts, spacers
and locknuts that secure the joystick mounting bracket
to the armrest plate.
7. Repeat STEPS 1-6 for the opposite armrest plate, if
necessary.
FIGURE 2 - REPLACING ARMREST PLATE
FRONTREAR
This Procedure Includes the Following:
Replacing Armrest Pads
Replacing Armrest Plate
NOTE: The following procedures are for Captain's
seats only.
WARNING
After ANY adjustments, repair or service
and BEFORE use, make sure that all at-
taching hardware is tightened securely -
otherwise injury or damage may result.
Joystick Mounting Bracket
Hex Bolts
Spacers
Locknuts
Phillips
Screw
Armrest Insert
Phillips Screw
Armrest Pad
Armrest Plate
Lug Bolt
Washers
Locknuts
Washers
Seat Frame
Assembly
