SECTION 7—REAR WHEELS
Part No 1100868 47 9000 Jymni™Pediatric Series
Replacing Rear Wheel Handrim
NOTE: For this procedure, refer to
FIGURE 7.3.
1. Remove the rear wheel from the
wheelchair. For non-recliner models,
refer to Removing/Installing the Rear
Wheels on page 45.
2. Remove the mounting screws that
secure the handrim to the rear wheel.
3. Remove the existing handrim.
4. Install the new handrim by reversing
the preceding steps.

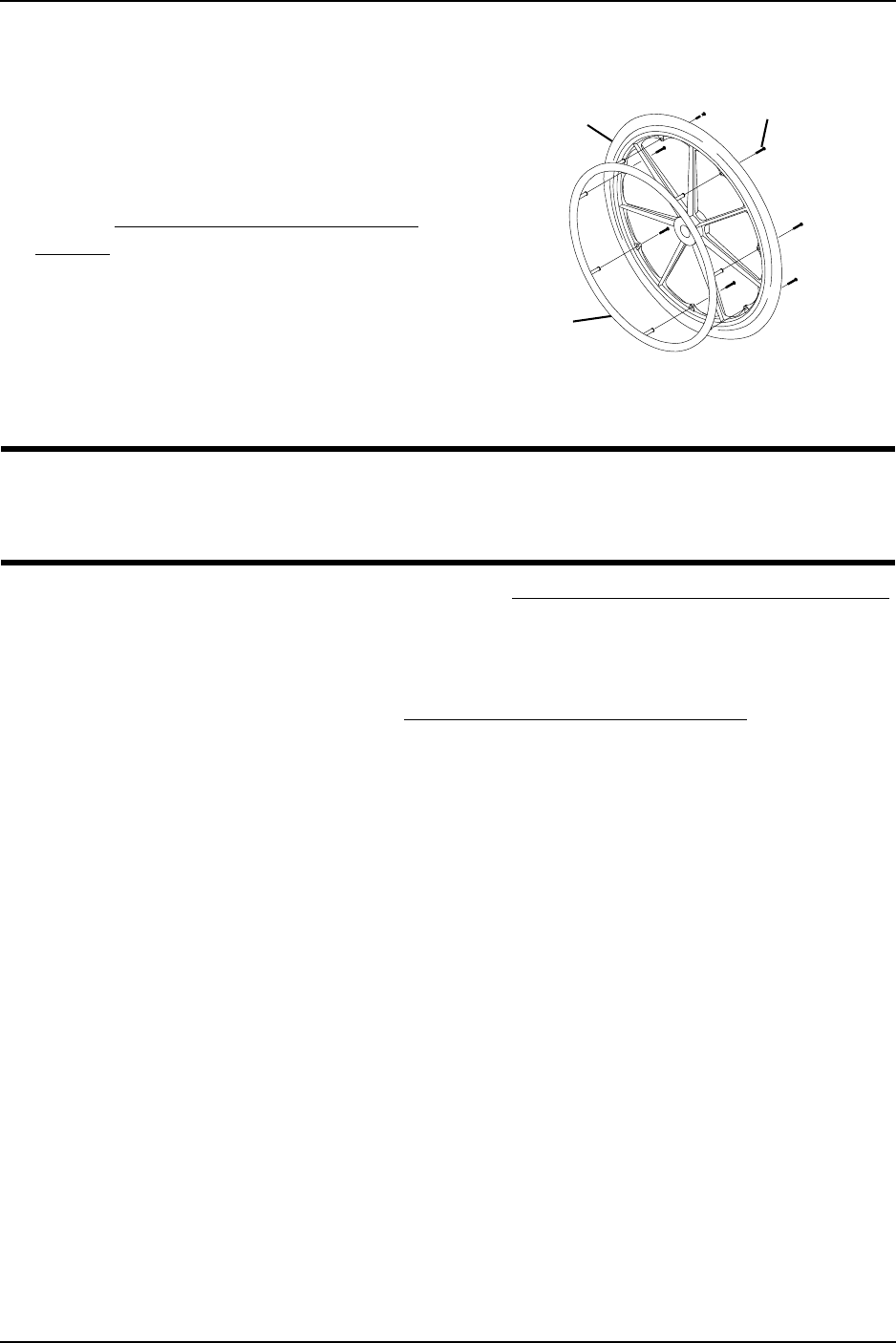

FIGURE 7.3 Replacing Rear Wheel
Handrim
ƽ WARNING
Make sure detent pin and detent balls of the quick-release axles are fully released
before operating the wheelchair.
5. Reinstall rear wheel to the wheelchair. Refer to Removing/Installing the Rear Wheels
on page 45.
6. If the detent balls of the quick-release axles (if applicable) are not protruding past the
inside of the axle bushing or there is too much movement of the rear wheel assembly
in a back and forth position, refer to Adjusting the Quick-Release Axle on page 48.
7. Repeat STEPS 1-6 for the opposite rear wheel if necessary.
Mounting Screw
Rear Wheel
Handrim
