Using the S-1608/S-0816 System
Installing the Rack-mount kit
S-1608 and S-0816
The S-1608 and S-0816 can be used in a free standing configuration, or rack-mounted using the
installed rack-mount kit.
1. Turn off the power on all equipment and disconnect all cables from the S-1608 or S-0816 unit.

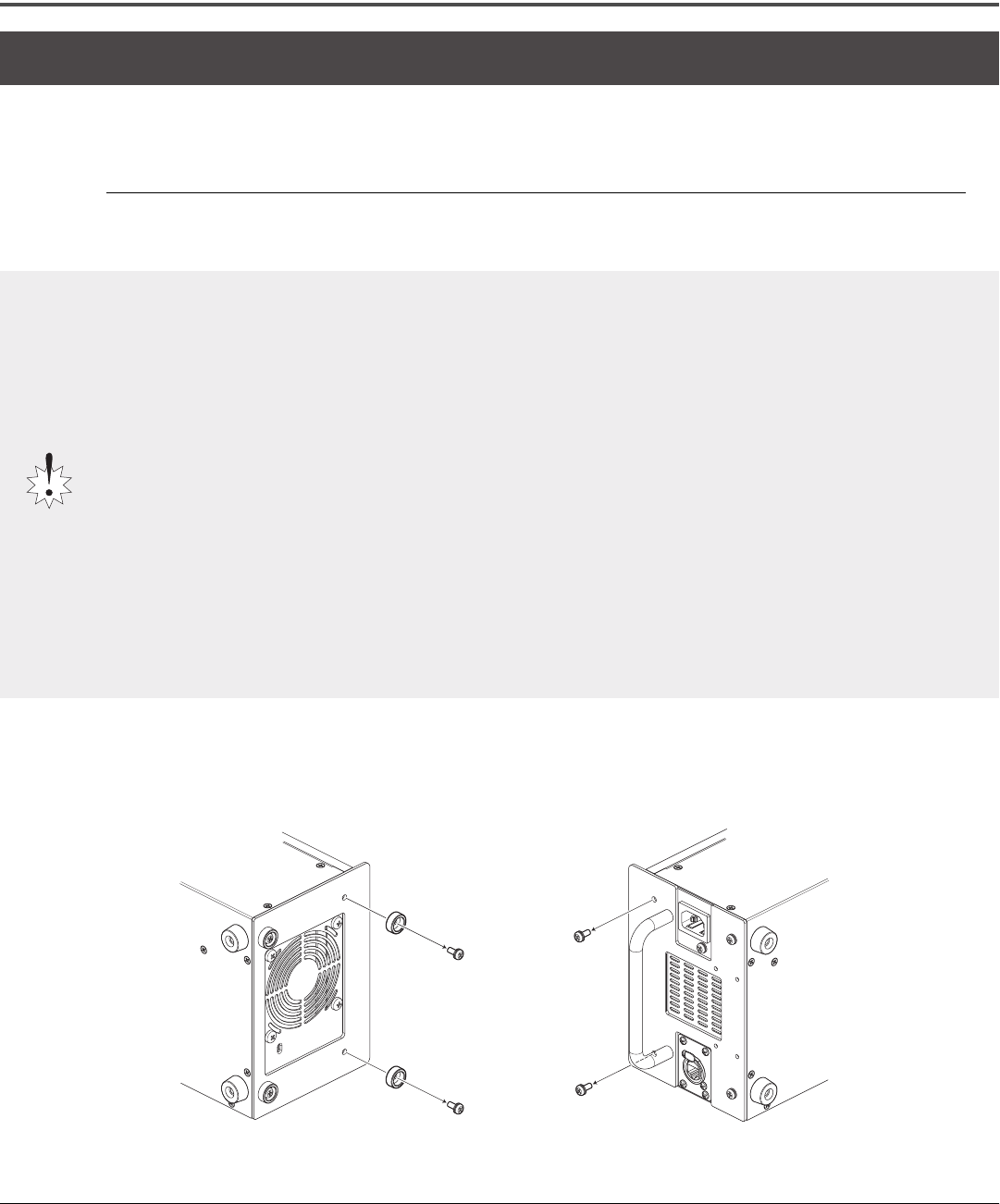

2. Remove only the screws shown in the following diagram (4 screws total).
fig.6-02.eps
Installation
Precautions for Rack Mounting
• When mounting the S-1608 or S-0816 in a rack, observe the following precautions to ensure
efficient and effective cooling.
- Ensure that the location provides good air flow and ventilation.
- Do not allow the vents to become obstructed.
- Avoid using the S-1608 or S-0816 in sealed-type rack mounts. As this type of rack does not
permit heated air within the rack to be expelled, the heated air is drawn into the S-1608 or
S-0816 as a result, thus preventing adequately efficient cooling.
- If the rack’s rear panel is not removable, ensure that a ventilation port or exhaust fan is
provided at the top of the rack’s rear panel to expel any accumulated heat.
- If the S-1608 or S-0816 is mounted in a portable rack, remove both the front and rear rack
covers before use to ensure that the S-1608’s or S-0816’s front and rear panels remain
unobstructed.
• Use due caution when mounting the S-1608 or S-0816 in a rack or other enclosure so you don’t
get your fingers wedged or pinched.
