Vacuum Pressure Indicator
(VAC)
Models 172R and 172S
Displays standby vacuum pump pressure
10
Fuel Quantity Indicator
(FUEL QTY GAL)
Displays the quantity of fuel in gallons (gal) in each tank (left–L and right–R)
from zero to full (F)
When full, the indicator displays to 35 gal per side (24 gal for Models 172R
and 172S)
11
Engine Hours (Tach)
(ENG HRS)
Models 172R and 172S
Displays a numeric readout for the time in hours (hrs) the engine has been
in service
12
Voltmeter
(M, E BUS VOLTS)
Displays the main and essential bus voltages
13
Ammeter
(M, S BATT AMPS)
Displays the main and standby battery load in amperes

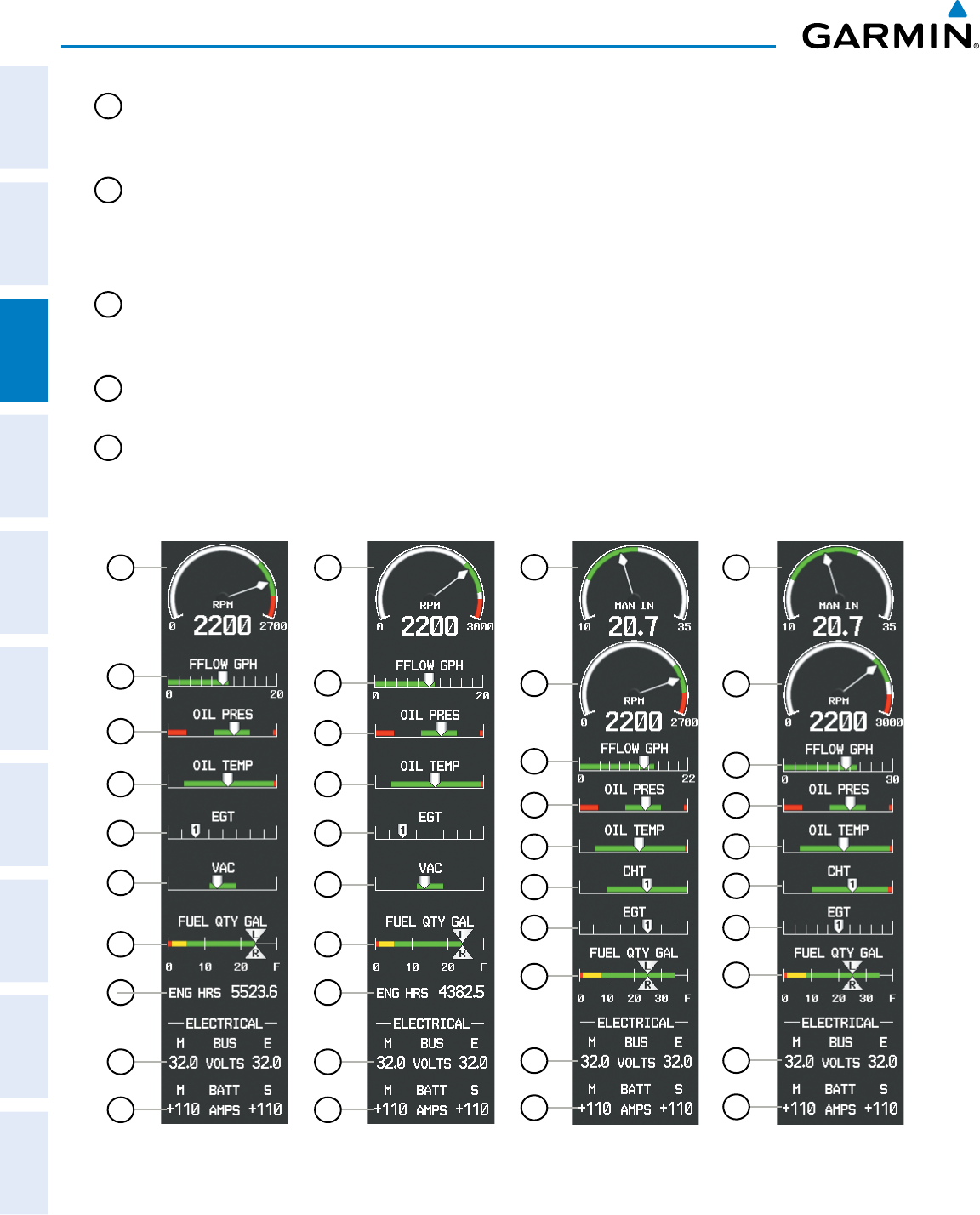

Figure 3-4 Engine Display (Normally-Aspirated Aircraft)
