190-00498-07 Rev. A
Garmin G1000 Pilot’s Guide for Cessna Nav III
79
FLIGHT INSTRUMENTS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
UNUSUAL ATTITUDES
When the aircraft enters an unusual pitch attitude, red chevrons pointing toward the horizon warn of extreme
pitch.ThechevronsaredisplayedontheAttitudeIndicator,startingat50˚aboveand30˚belowthehorizon
line.

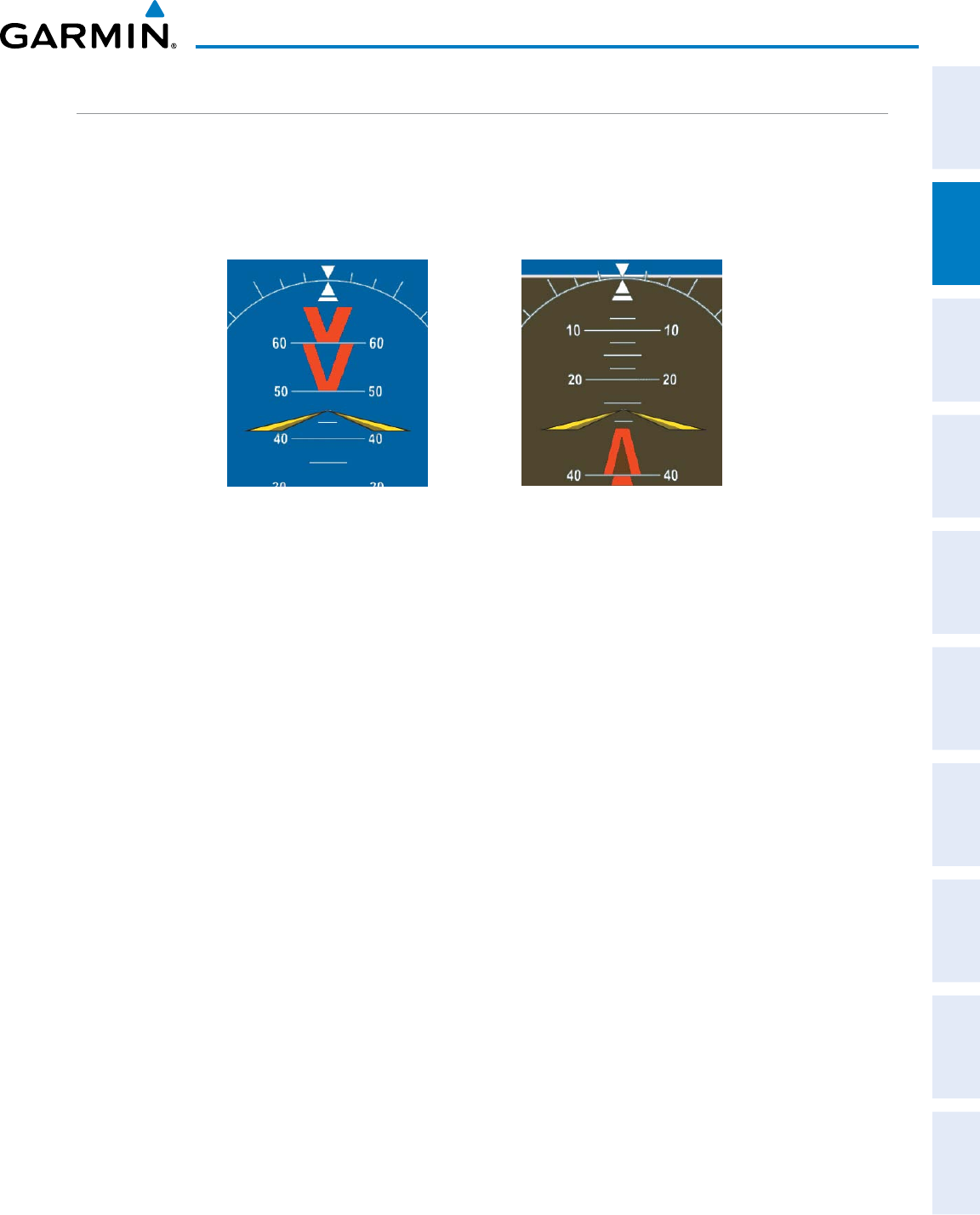

Figure 2-41 Pitch Attitude Warnings
Nose Low
Nose High
Ifpitchexceeds+30˚/-20˚orbankexceeds65˚,someinformationdisplayedonthePFDis removed. The
AltimeterandAirspeed,Attitude,VerticalSpeed, andHorizontalSituationindicatorsremainonthedisplay
andtheBearingInformation,Alerts,andAnnunciationwindowscanbedisplayedduringsuchsituations.The
followinginformationisremovedfromthePFDandtheirsoftkeysaredisabledwhentheaircraftexperiences
unusual attitudes:
•TrafcAnnunciations
•AFCSAnnunciations
•FlightDirectorCommandBars
•InsetMap
•OutsideAirTemperature(OAT)
•WindData
•SelectedHeadingReadout
•SelectedCourseReadout
•PFDSetupMenu
•Windowsdisplayedinthelower
right corner of the PFD:
–Timer/References
–NearestAirports
– Flight Plan
–Alerts
– Procedures
•Minimum Descent Altitude/
DecisionHeightReadout
•Vertical Deviation, Glideslope,
and Glidepath Indicators
•AltimeterBarometricSetting
•SelectedAltitude
•VNVTargetAltitude
•SystemTime
•TransponderStatusBox
