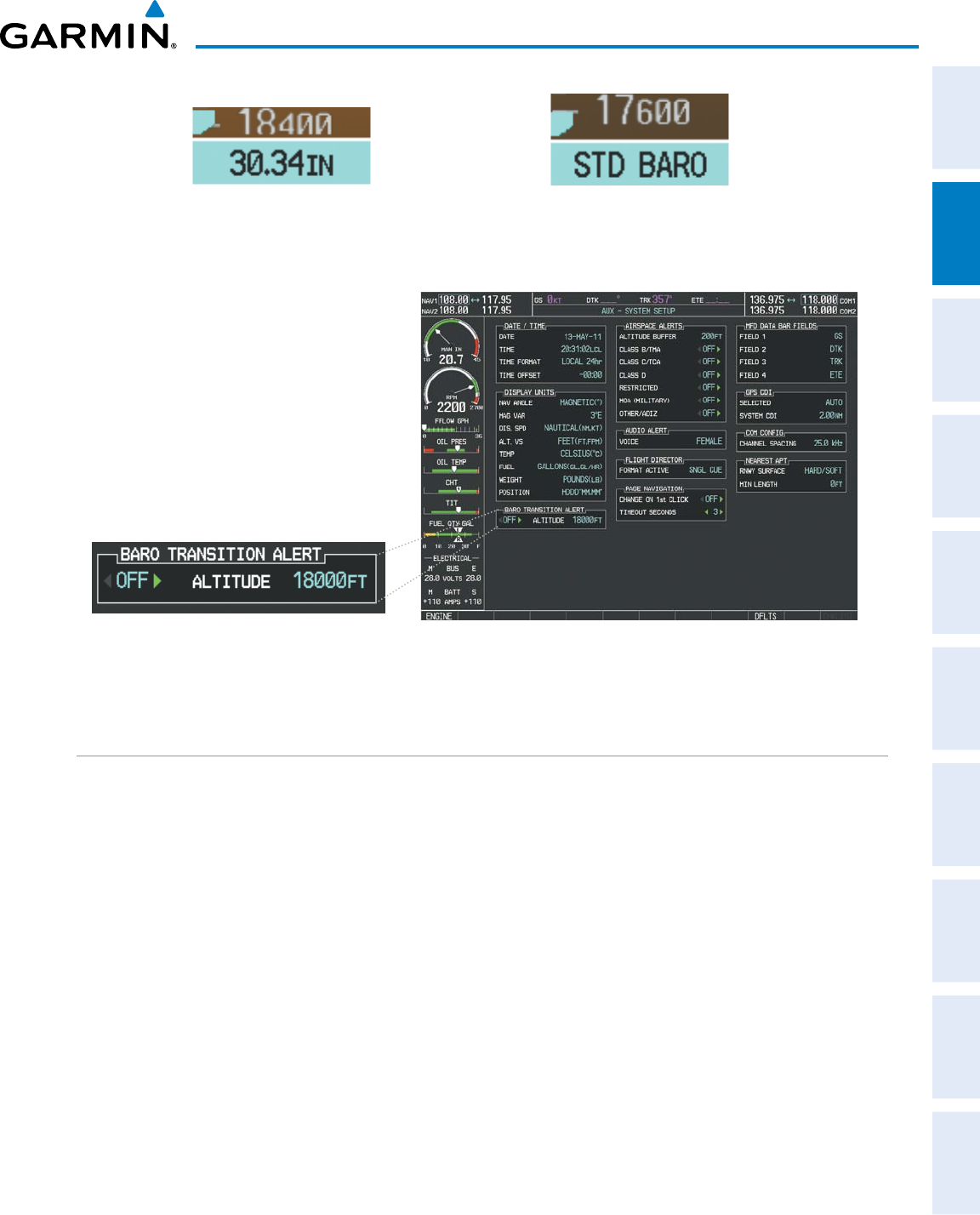

Pressure setting flashes during climb above
transition altitude if the STD BARO Softkey
has not been pressed.
Pressure setting flashes during descent below
transition altitude to indicate setting has not
been changed from STD BARO.
Figure 2-10 Baro Transition Alert
(AUX - System Setup Page)
VERTICAL SPEED INDICATOR (VSI)
The VerticalSpeedIndicator(VSI)displaystheaircraftverticalspeedonaxedscalewithlabelsat1000and
2000fpmandminortickmarksevery500fpm(Figure2-11).Digitsappearinthepointerwhentheclimbor
descentrateisgreaterthan100fpm.Iftherateofascent/descentexceeds2000fpm,thepointerappearsatthe
edge of the tape and the rate appears inside the pointer.
AmagentachevronisdisplayedastheRequiredVerticalSpeedIndication(RVSI)forreachingaVNVTarget
Altitudeoncethe“TOD[TopofDescent]within1minute”alerthasbeengenerated.SeetheFlightManagement
andAFCSsectionsfordetailsonVNVfeatures,andrefertoSection2.2,SupplementalFlightData,formore
informationaboutVNVindicationsonthePFD.
