295
HAZARD AVOIDANCE
CELL MOVEMENT
CellMovementdata(Figure6-20)showsthelocationandmovementofstormcellsasidentiedbythe
ground-basedsystem.Cellsarerepresentedbyyellowsquares,withdirectionofmovementindicatedwith
short, orange arrows.

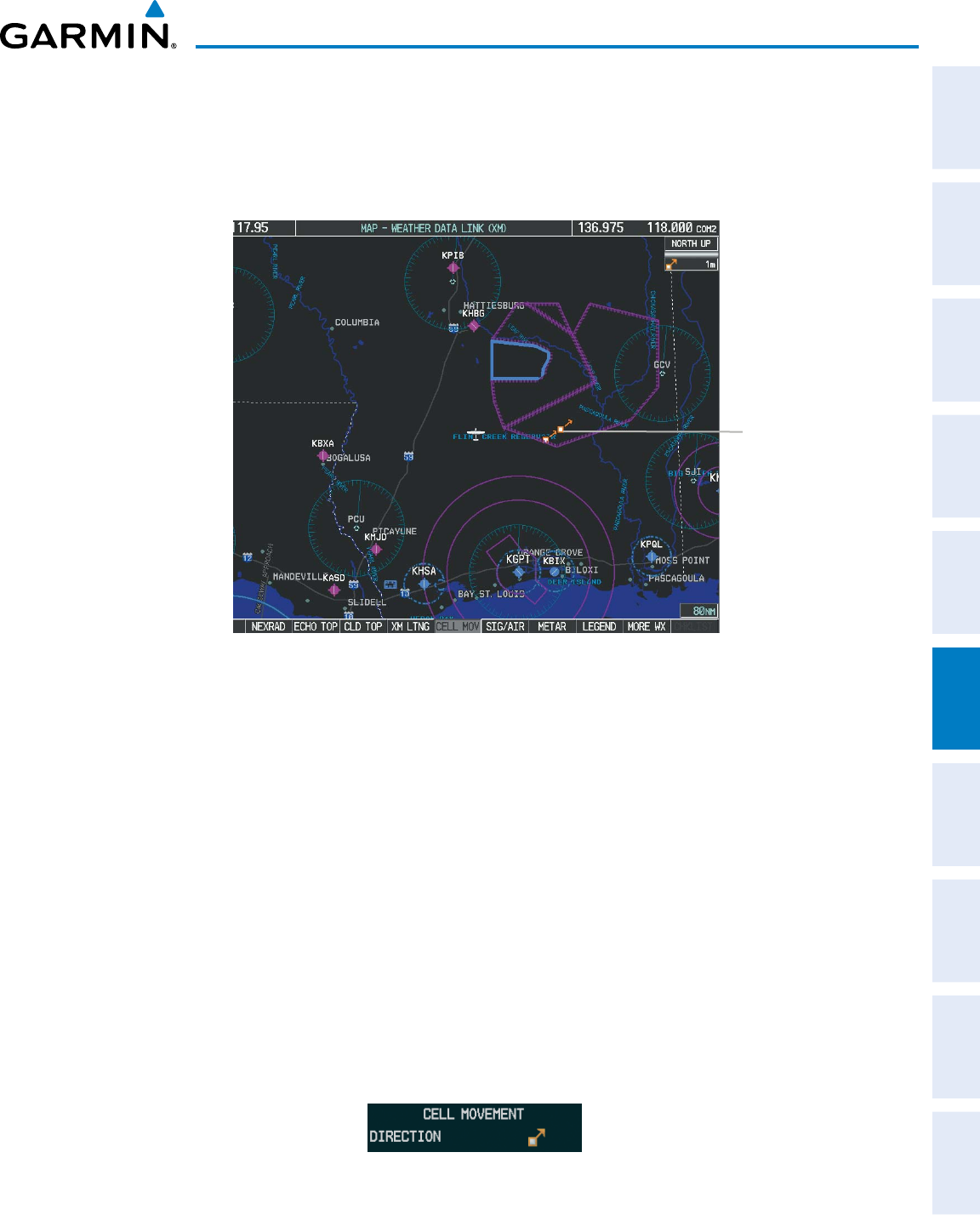

Figure 6-20 Cell Movement Data
Storm Cells
Onmostapplicablemaps,CellMovementdataisselectedfordisplayalongwithNEXRAD.OntheWeather
Data Link (XM) Page, Cell Movement data can be selected independently.  Cell Movement data can be
displayed on the following maps:
•PFDInsetMap
•NavigationMap
•AUX-TripPlanningPage
•NearestPages
Displaying Cell Movement information:
1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). This step is not necessary on the
Weather Data Link (XM) Page.
2) Press the NEXRAD Softkey (CEL MOV Softkey on the Weather Data Link (XM) Page). For Cell Movement to
be displayed on maps other than the Weather Data Link (XM) Page, Cell Movement must be turned on in the
Navigation Map Setup Menu (see “Setting Up XM Satellite Weather”).
To display the Cell Movement legend on the Weather Data Link (XM) Page, (Figure 6-21), press the
LEGENDSoftkeywhenCellMovementisselectedfordisplay.
Figure 6-21 Cell Movement Legend
