8.4 FLITECHARTS
FliteCharts resemble the paper version of AeroNav Services terminal procedures charts.  The charts are
displayed with high-resolution and in color for applicable charts. FliteChartsdatabasesubscriptionisavailable
fromGarmin.Availabledataincludes:
•Arrivals(STAR)
•DepartureProcedures(DP)
•Approaches
•AirportDiagrams
FLITECHARTS SOFTKEYS
FliteChartsfunctionsaredisplayedonthreelevelsofsoftkeys.WhileontheNavigationMapPage,Nearest
Airports Page, or Flight Plan Page, pressing the
SHW CHRT
Softkeydisplaystheavailableterminalchartand
advancestothechartselectionlevelofsoftkeys:CHRT OPT, CHRT, INFO-1, DP, STAR, APR, WX, and
GO
BACK.ThechartselectionsoftkeysappearontheAirportInformationPage.
Pressing the GO
BACKSoftkeyrevertstothetoplevelsoftkeysandpreviouspage.
Pressing the CHRT OPT Softkey displays the available terminal chart and advances to the next level of
softkeys:ALL, FIT
WDTH, FULL
SCN, and BACK.
WhileviewingtheCHRT OPTSoftkeys,after45secondsofsoftkeyinactivity,thesystemrevertstothechart
selectionsoftkeys.
NOTAMsarenotavailablewithFliteCharts.TheNOTAMSoftkeylabelappearssubduedandisdisabled.

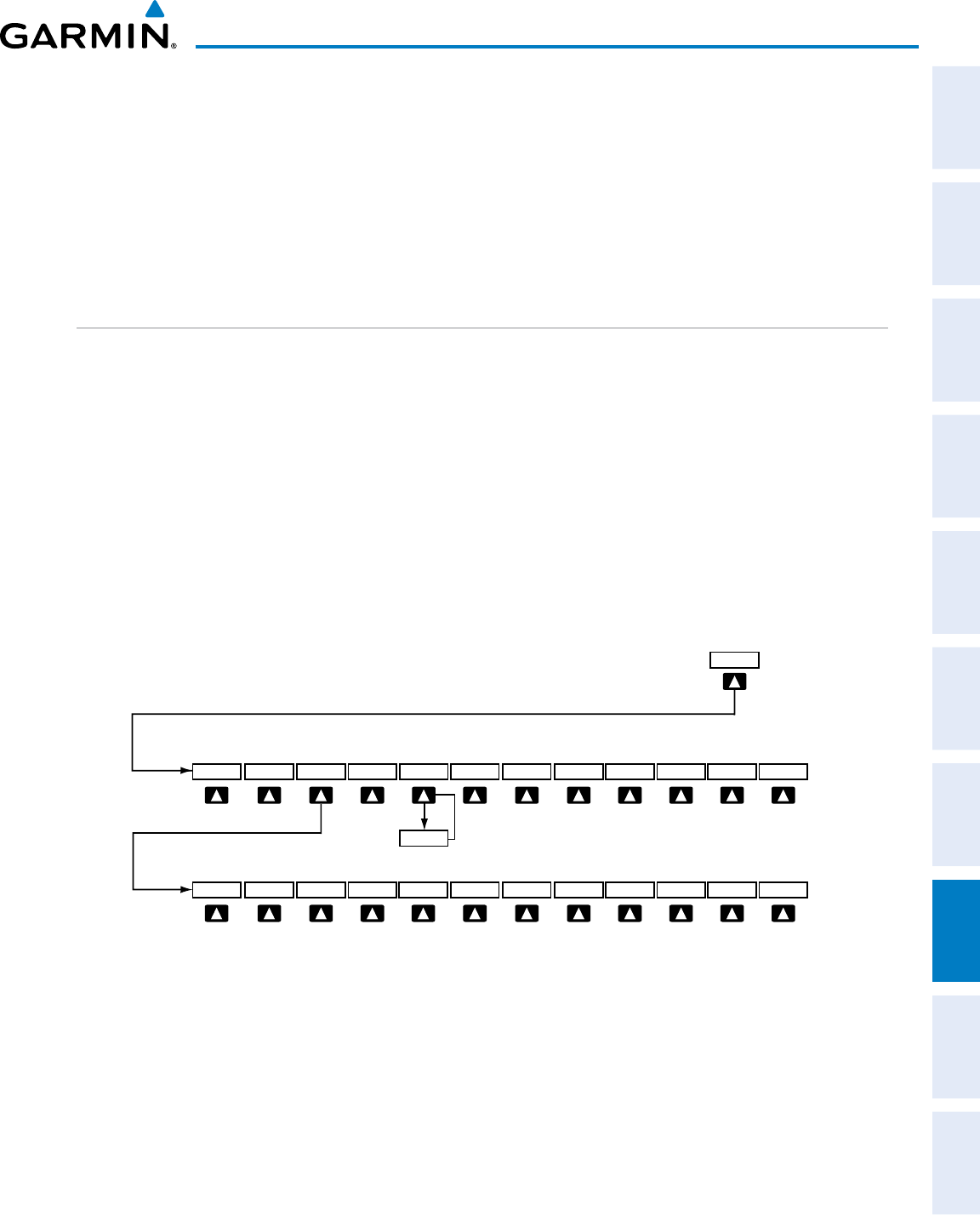

Figure 8-48 FliteCharts SHW CHRT, Chart Selection, and Chart Option Softkeys
Pressing the GO BACK Softkey returns
to the top-level softkeys and previous page.
Pressing the BACK Softkey returns
to the Chart Selection Softkeys.
ALL
GO BACK
SHW CHRT
WX
APR
STAR
DP
CHRT
CHRT OPT
FIT WDTH
FULL SCN
BACK
INFO-1
INFO-2
