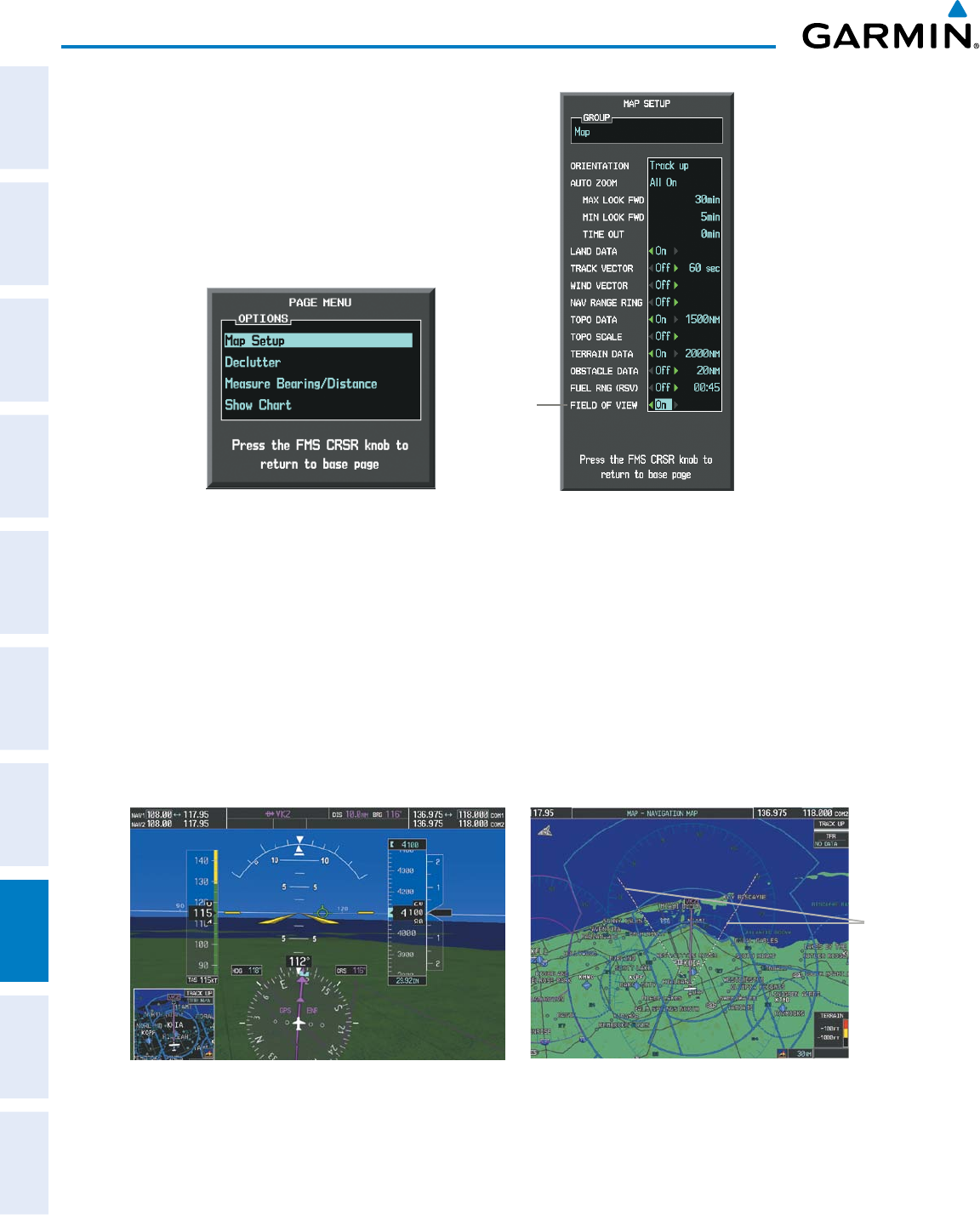

Figure 8-12 Option Menus
Navigation Map Page OPTIONS Menu
Map Setup Menu, Map Group, Field of View Option
Field of
View
3) Turn the FMS Knob to select the Map Group and press the ENT Key.
4) Turn the large FMS Knob to scroll through the Map Group options to FIELD OF VIEW.
5) Turn the small FMS Knob to select On or Off.
6) Press the
FMS
Knob to return to the Navigation Map Page.
ThefollowinggurecomparesthePFDforwardlookingdepictionwiththeMFDplanviewandFIELDOF
VIEWturnedon.
Figure 8-13 PFD and MFD Field of View Comparison
Lines
Depict
PFD Field
of View
SVS View on the PFD
Field of View on the MFD
