HAZARD AVOIDANCE

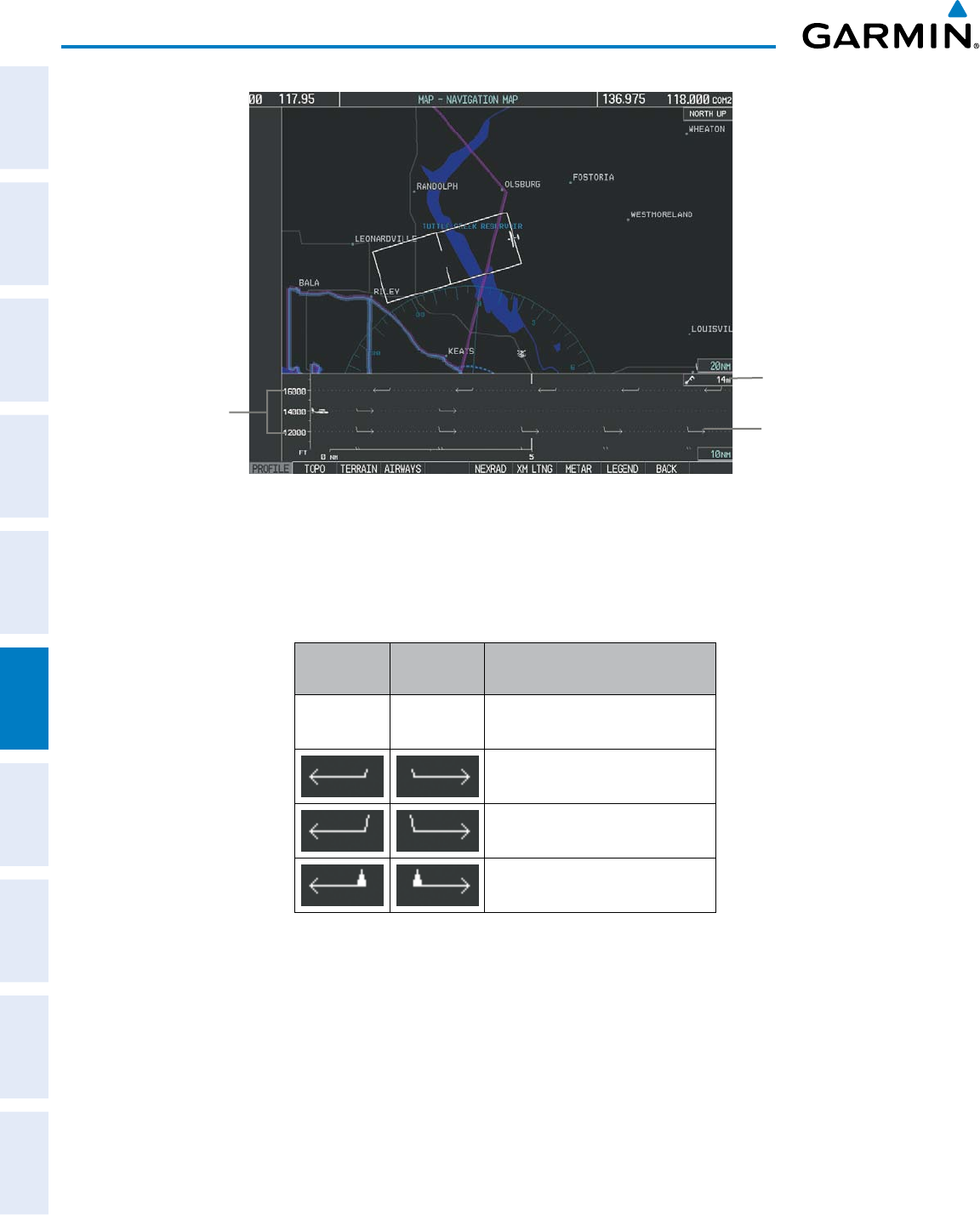

Figure 6-83 Navigation Map Page with Winds Aloft Data on
Profile View
Wind Component
Velocity and Direction
Arrow
Winds Aloft Data Age
Altitude Scale
Arrowspointingtotheleftindicateheadwindcomponents;tailwindcomponentarrowspointtotheright,
asshowninTable6-8.
Headwind
Symbol
Tailwind
Symbol
Headwind/Tailwind
Component
None None Less than 5 knots
5 knots
10 knots
50 knots
Table 6-8 Profile View Headwind/Tailwind Component Symbols
Showing/Hiding Profile View (containing winds aloft data)
1) Select the Navigation Map Page.
2) Press the MAP Softkey.
2) Press the PROFILE Softkey.
Or:
1) Press the MENU Key.
