The Averages tab of the Current screen, shown in Figure 3-7, displays the
average oxygen percentage for each probe grouping. Each of these four
averages are represented by either a green or red status tag and bar. Green
signifies that the average is OK, red means that the reading is either in a fault
or warning condition.
Fault Condition
A Fault condition is indicated when one or more probes included in an
average has failed. The failed probes are not included in the average
calculation for that average.
Warning Condition
A warning condition occurs for an average when only all but one channel
included in an average is in a failed state. In this state, an "average"
cannont be calculated, and the channel will output the value of the
remaining functional probe.

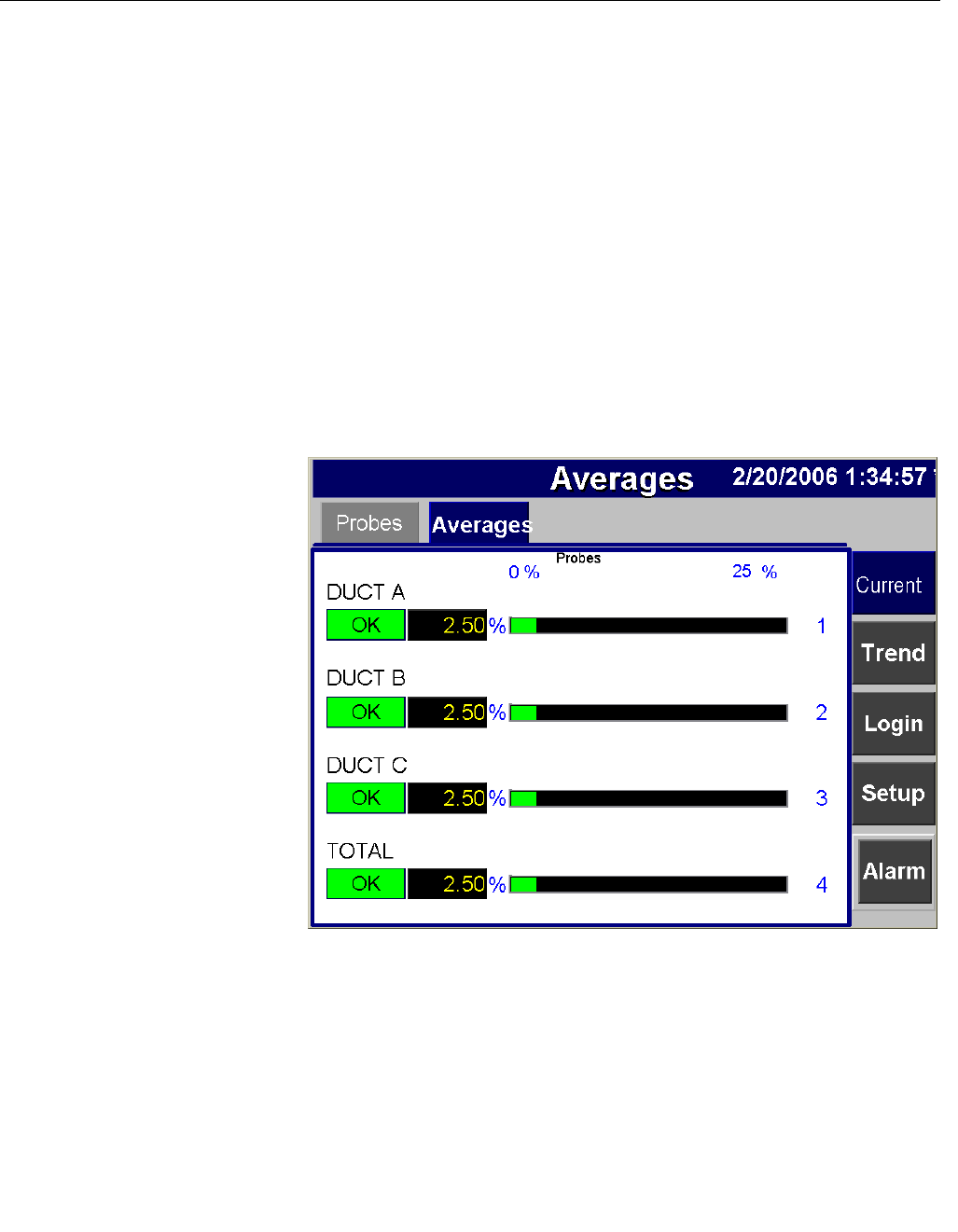

Figure 3-7. Average Current
