3Ć27Maintaining the System
   
Sample Chamber
Sapphire
Window
Mounting
Pin
Cam
Bubble Trap

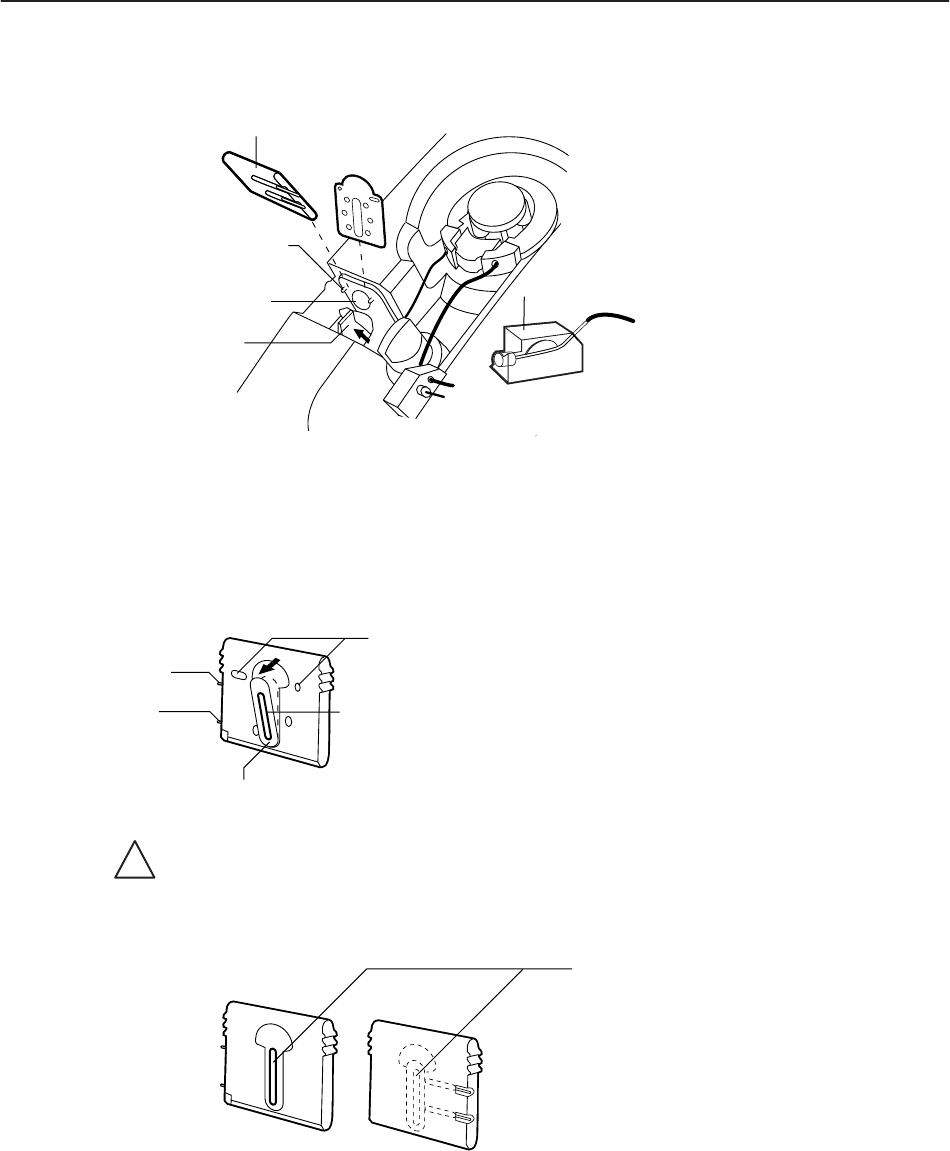

4. Remove the gasket and support:
a. Slide your finger under the flat metal support of the gasket.
b. Lift the gasket and support from the sample chamber.
  
Gasket Support
Gasket
Mounting Pin
Holes
Inlet
Outlet
CAUTION: Do not touch the optical zone (front or back area enclosed by the
gasket) of the sample chamber with your fingers.
 
Optical Zone Areas
Sample Side Port Side
5. Push a 0.016-inch diameter clot-removal line into the metal tubing of the inlet
and outlet ports of the sample chamber.
6. Flush the inlet and outlet ports to remove any clots or debris:
!
