Daniel 3812 Liquid Ultrasonic Flow Meter Installation Manual Section 1: Introduction
3-9000-765 Rev H May 2015
Daniel 3812 Liquid Ultrasonic Flow meter design 7

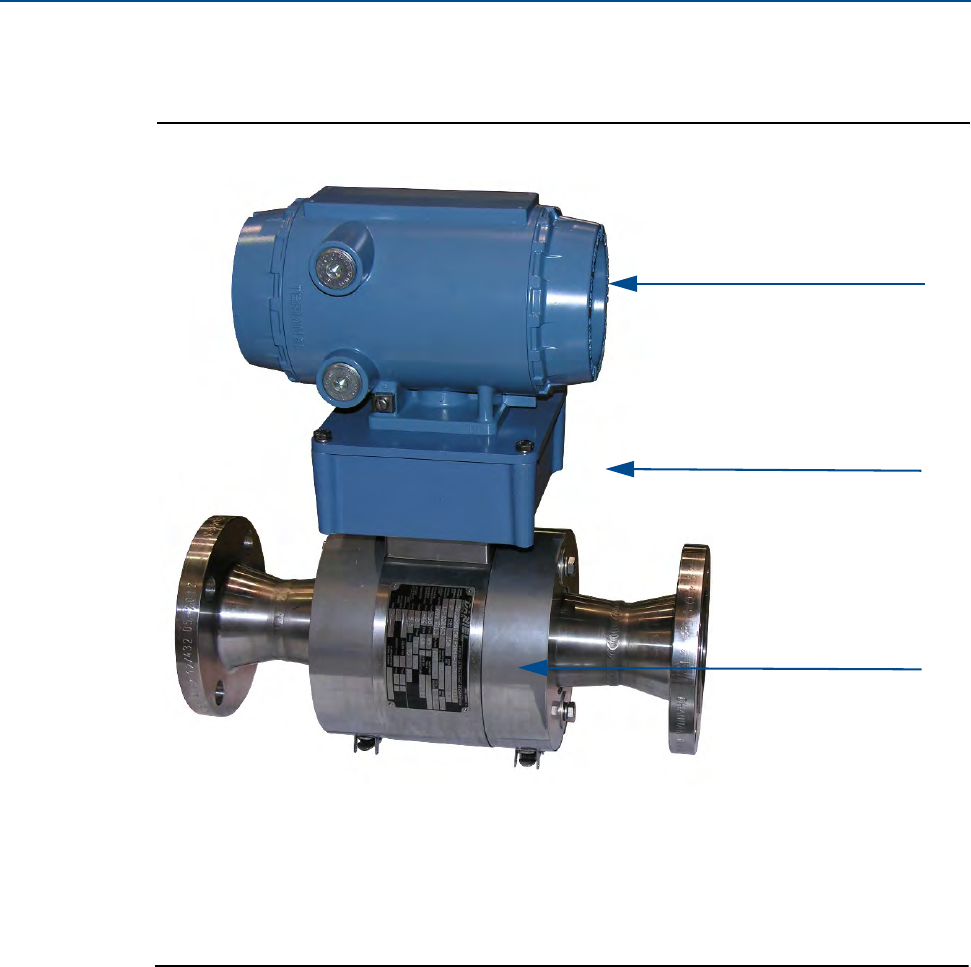

Figure 1-3 Direct mount electronics with latched single band shrouds and remote display
A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board,
B. Intrinsically-safe base enclosure includes Acquisition Module
C. Meter - body and latched band shrouds for transducers and cable assemblies
A.
B.
C.
Backplane board, and optional LCD Board with glass endcap)
