G4000 9'' x 19'' Lathe -11-
The follow rest is normally used with small diam-
eter stock to prevent the workpiece from ''spring-
ing'' under pressure from the turning tool. To
install the follow rest:
11..
The follow rest is secured to the saddle with
two cap screws.
SSeeee FFiigguurree 66..
22..
The sliding fingers on the follow rest are
similar to those on the steady rest, and
should be lubricated to prevent premature
wear.

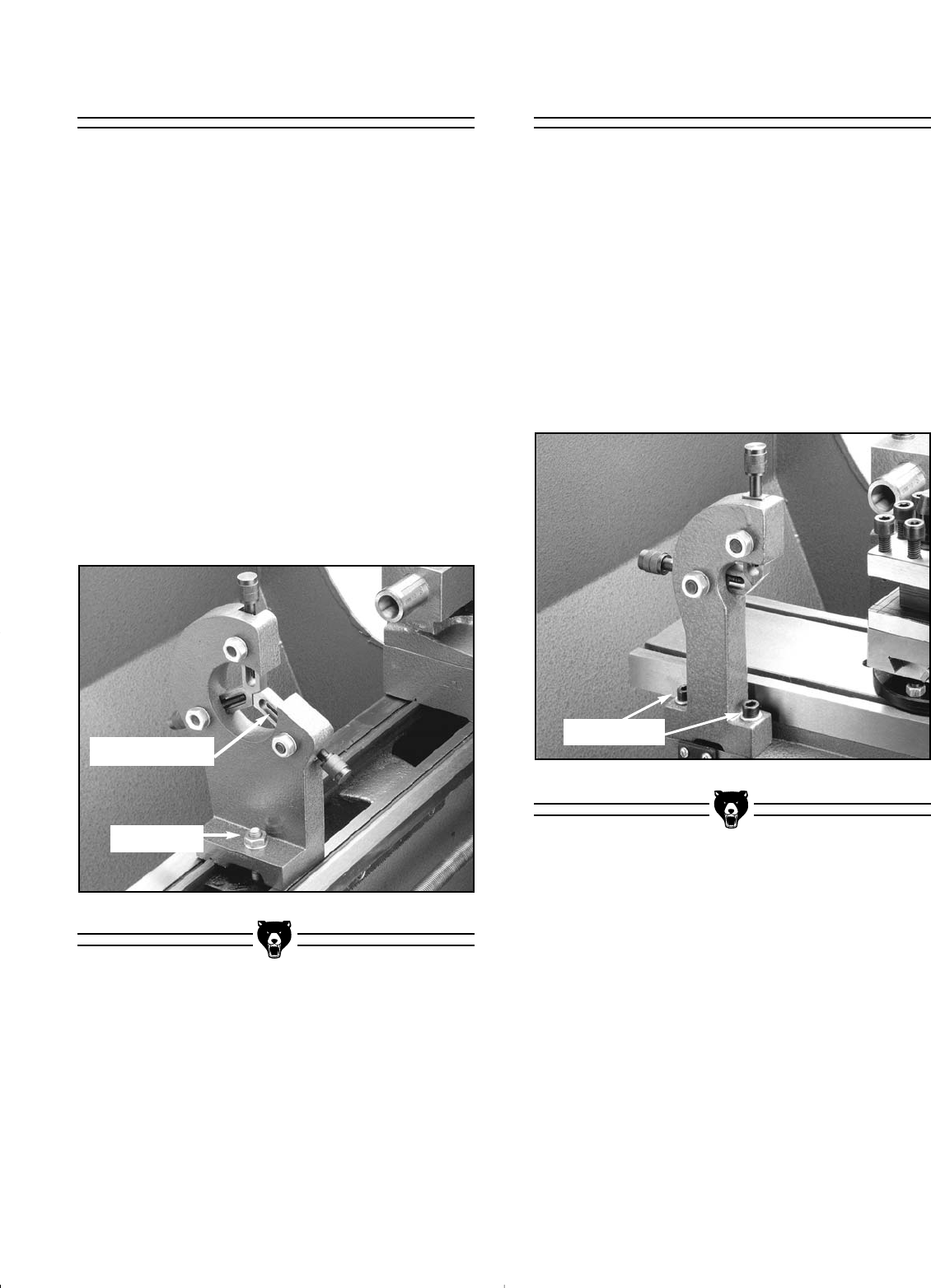

FFiigguurree 66..
Follow rest secured to saddle.
FFiigguurree 55..
Steady rest in place.
SStteeaaddyy RReesstt
The steady rest supports long, small diameter
stock that otherwise could not be turned. The
steady rest can also replace the tailstock to allow
for cutting tool access at the outboard end of your
workpiece.
To mount the steady rest :
11..
Secure to bedway from below with the lock-
ing plate.
22..
A single M8-1.25 x 55mm cap screw, along
with a nut and washer, holds the steady
rest in place.
SSeeee FFiigguurree 55..
33..
The sliding fingers on the center steady rest
should receive periodic lubrication while in
use to prevent premature wear.
FFoollllooww RReesstt
Sliding Fingers
Cap Screw
Cap Screws
