13
Using the Configuration Menu (continued)

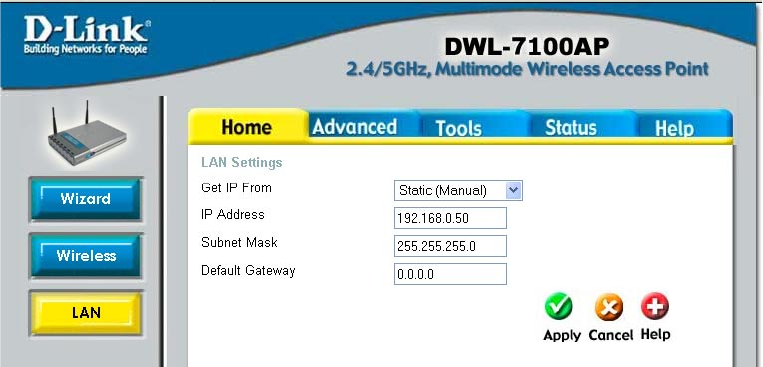

Home > LAN
LAN is short for Local Area Network. This is considered your internal network. These
are the IP settings of the LAN interface for the DWL-7100AP. These settings may be
referred to as private settings. You may change the LAN IP address if needed. The LAN
IP address is private to your internal network and cannot be seen on the Internet.
Get IP From-
Select Static (Manual) or Dynamic (DHCP) as the method you will
use to assign an IP address to the DWL-7100AP.
Apply-
Default Gateway-
This field is optional. Enter in the lP address of the router on
your network.
IP Address-
The IP address of the LAN interface. The default IP address
is: 192.168.0.50 (Note: You will need to use the AP Manager to
determine the IP address dynamically assigned to the access
point.)
Subnet Mask-
The default subnet mask is 255.255.255.0
Click Apply if you have made any changes.
