EN Image formation troubleshooting 165
9

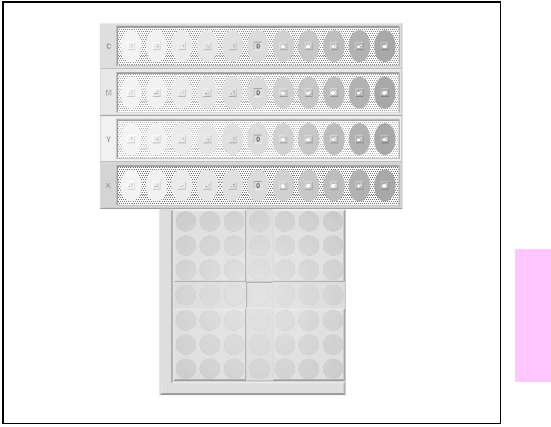

Color balance calibration page
Step 2: Adjust the cyan (C) density setting
Examine the cyan density bar (C) on the color balance calibration page
from a distance of 2 meters (6 feet). If the center oval matches the
background pattern more than the other ovals, the cyan density does
not need to be adjusted and you should continue on to the magenta (M)
setting. If an oval left of center or right of center matches the
background more than the center oval, use the following steps to enter
the number:
1 Press I
TEM until CYAN DENSITY displays.
2 Press the right side of the VALUE key to increase the value, or press
the left side to decrease it, until the number corresponding to the
oval that most closely matches the background pattern is displayed.
