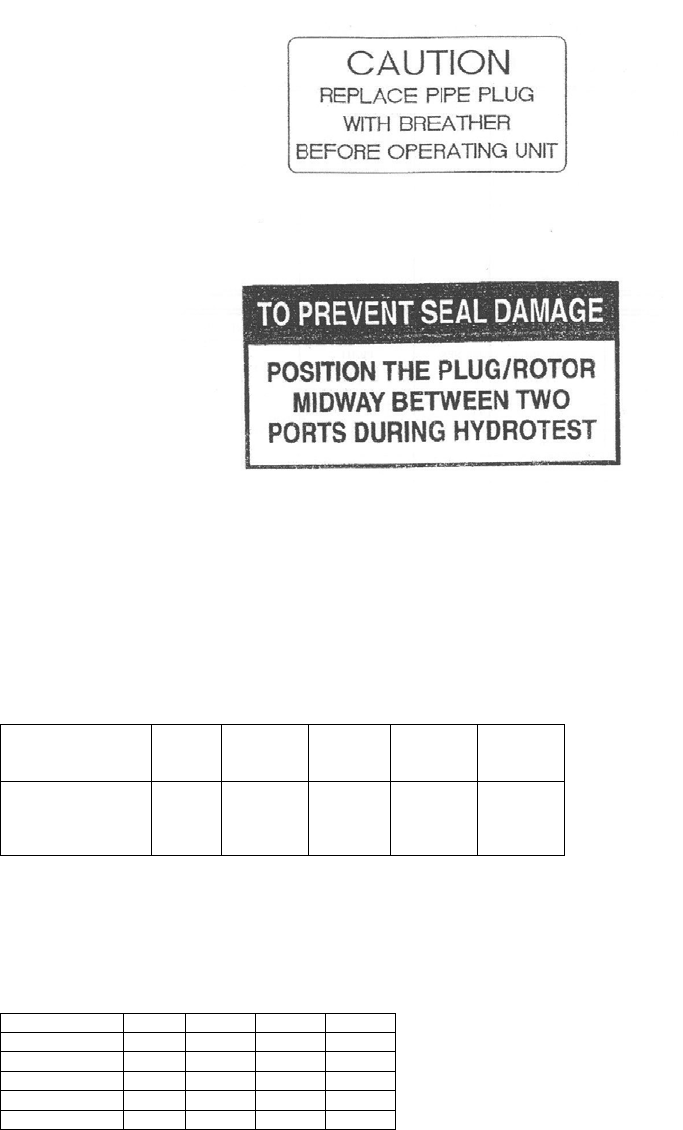

OBSERVE ALL WARNING DECALS AND TAGS
MINIMUM TOOLS REQUIRED:
A torque wrench, socket wrench, and allen head wrenches are required to install the Multiport and Actuator
assembly.
MULTIPORT SIZE
NPS 2” NPS 3”
ANSI 600
NPS 3”
ANSI
900/1500
NPS 4”
ANSI 600
NPS 4”
ANSI 900
BONNET NUT
SOCKET SIZE
1 7/16”
2”
2 3/8”
2 3/8”
2 9/16”
Other socket sizes required: 7/16", 1/2", 9/16", 3/4", 1 1/8".
Allen key sizes required: 5/32", 1/4".
Wrench sizes for Multiport flanges:
ANSI RATING 300 600 900 1500
NPS 2 1 1/16 1 1/16 - -
NPS 3 - 1 1/4 1 7/16 1 13/16
NPS4 - 1 7/16 1 13/16 2
NPS 6 - 1 5/8 1 13/16 2 3/16
NPS 8 - 1 13/16 2 3/16 -
