Right-rear cover
1. Remove the rear-door assembly. See Rear-door assembly on page 62.
2. Slide the right-rear cover toward the inside of the product to release it.

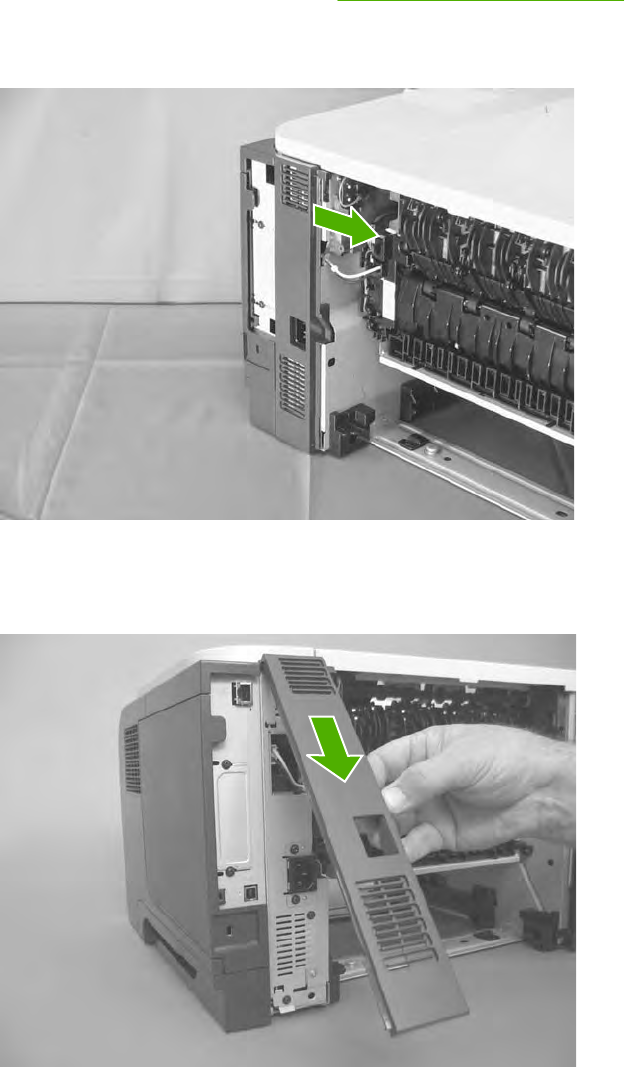

Figure 2-32 Remove the right-rear cover (1 of 2)
3. Rotate the bottom of the cover away from the product, and then pull down on the cover to remove
it.
Figure 2-33 Remove the right-rear cover (2 of 2)
68 Chapter 2 Removal and replacement ENWW
