94 Removal and replacement EN
Pickup Roller Assembly
1 Remove the Printer Covers.
2 Remove the paper pickup gear (Figure 6-21).
Note This gear is keyed to go on the shaft in only one way.
3 Remove the pickup roller grounding clip on the right of the printer by lifting each end of the clip up
and over the two metal guides and sliding the clip off. Figure 6-23 depicts the clip from an HP
LaserJet 5L. The clip from an HP LaserJet 6L (and some HP LaserJet 5Ls) is shaped differently.

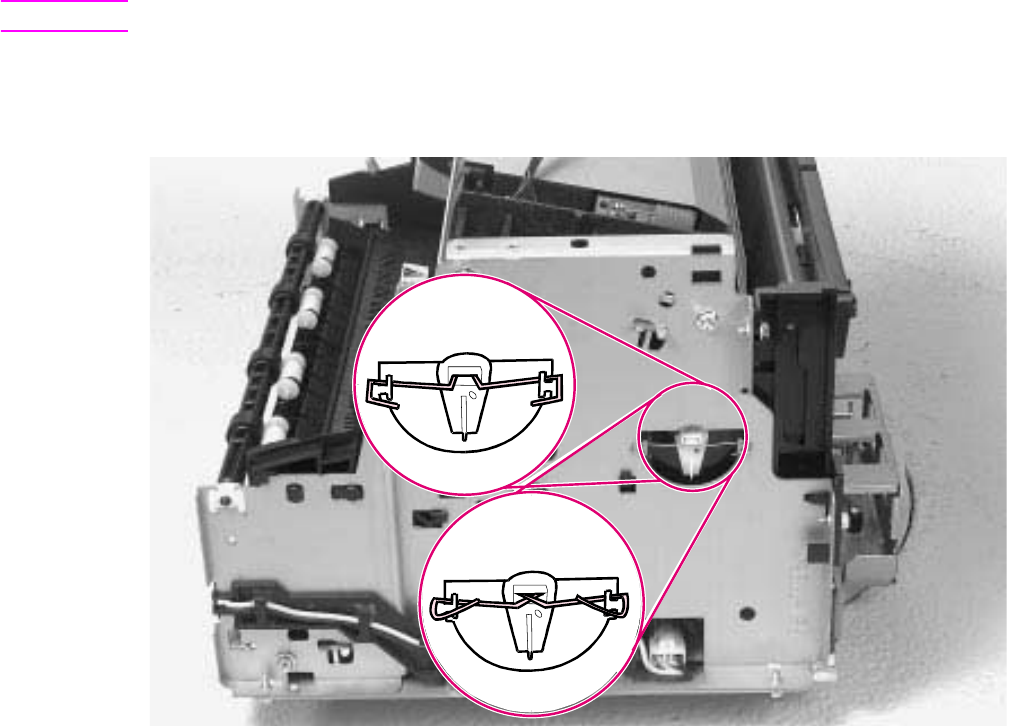

Figure 6-23 Pickup Roller Assembly removal (1 of 2)
5L
6L/6L Gold/6L Pro
(and some 5Ls)
