80 Removal and replacement EN
Delivery Assembly
1 Remove the Printer Covers and Exit Roller Assembly.
2 Remove the EP Right-hand assembly by pressing inward on the tab (Figure 6-9, callout 1) and
sliding the assembly toward the front of the printer (Figure 6-9, callout 2).
Note The EP Right-Hand assembly must be removed to access any fuser components.

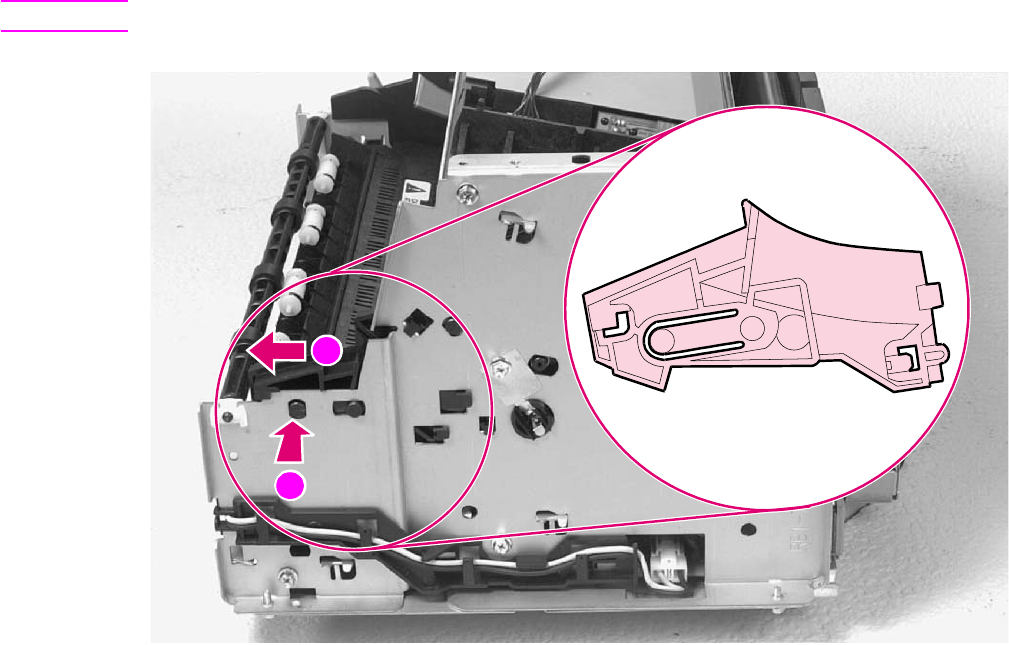

Figure 6-9 Delivery Assembly removal (1 of 2)
2
1
