EN Top assemblies 93
3 Remove the Solenoid connector (J204) from the DC Controller (Figure 6-22, callout 1).
4 Remove the self-tapping screw that holds the Solenoid in place (Figure 6-22, callout 2).
5 Unthread the wires from the printer chassis.
6 Lift the Solenoid off.

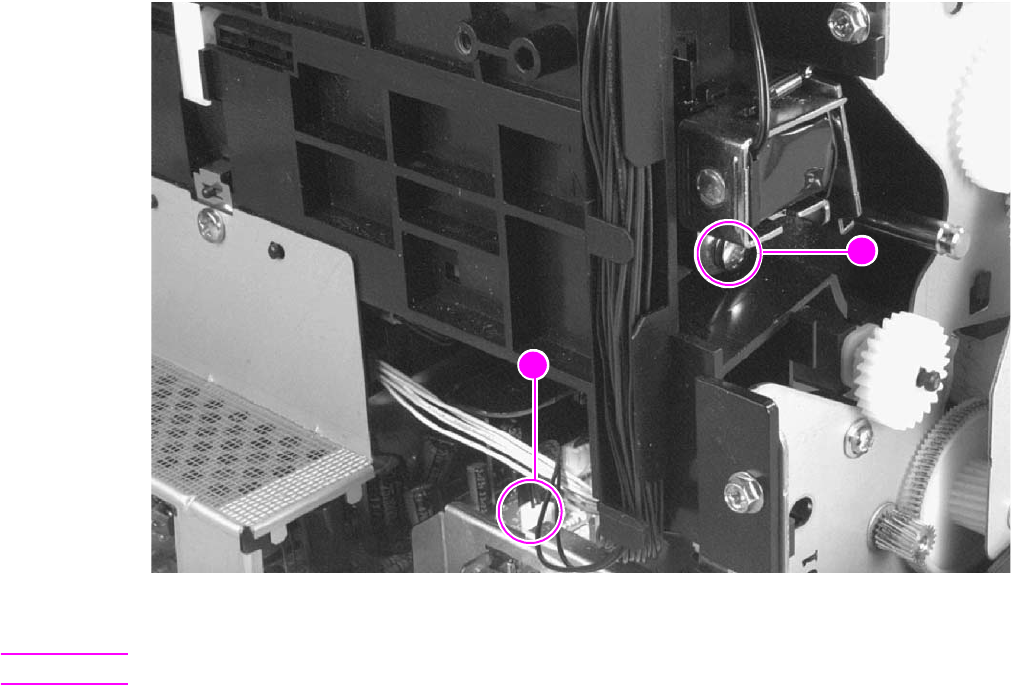

Figure 6-22 Solenoid removal (2 of 2)
Note When reinstalling this part, the Paper Pickup Gear is keyed to go on the shaft in only one way.
2
1
